Product Details:
|
| Cell Material: | Polycrystalline Silicon | Cell Array: | 4*9 |
|---|---|---|---|
| Cell Color: | Blue | Frame: | Anodized Aluminum Alloy |
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Back Sheet: | TPE Quality Plastic |
| Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
| High Light: | multicrystalline solar panels,polysilicon solar panel |
||

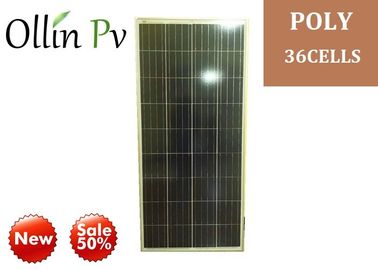

Dimensioin 1480*680*40mm solar panel 150w Polycrystalline solar panel price india solar panel home system
Key Features
> Withstand high wind (2400Pa) and snow loads (5400Pa)
> Guaranteed Positive Output Tolerance (0-3%)
>Excellent performance in low light environments
> High modules conversion efficiency
> 12V battery use
> With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.
> A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.
> The modules are embedded with a sheet of imported strong transparent glass, two sheets
of long endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity
TPT for different weather conditions.
> High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.
> A multifunction box ensure safe connection.
> The exterior design and electrical performance of the module can meet the requirements of superior
quality.
> 150W solar panel has several uses including marine , dry camp , and other off-grid applications. Whether
you are going camping in the mountains or taking a trip to the beach , this panel can be a great start to your
off-grid system .
Product parameter
| OLLIN-130P-160P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Poly156mm*156mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1480*680*40mm | ||||||
| Weight | 10kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 130WP | 150WP |
160WP |
||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 7.8A | 8.99A | 9.59A | ||||
| Max. power current(Imp) | 7.2A | 8.3A | 8.89A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
What are Solar Panels Made of?
Photovoltaic (PV) solar panels are made up of many solar cells. Solar cells are made of silicon, like
semiconductors. They are constructed with a positive layer and a negative layer, which together create an
electric field, just like in a battery.
How Do Solar Panels Generate Electricity?
PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction
around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative
side of the battery, through the lamp, and return to the positive side of the battery.
With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,
much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to
a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,
hydroelectricity, nuclear, coal, wind, or solar.
AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to
transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into
the AC grid? We use an inverter.
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
