Product Details:
|
| Cell Material: | Polycrystalline Silicon Solar Cell | Cell Array: | 4*9 |
|---|---|---|---|
| Cell Color: | Blue | Frame: | Anodized Aluminum Alloy |
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Packing: | 2pcs/CTN, 1700PCS/40hq Container |
| Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
| High Light: | multicrystalline solar panels,polysilicon solar panel |
||

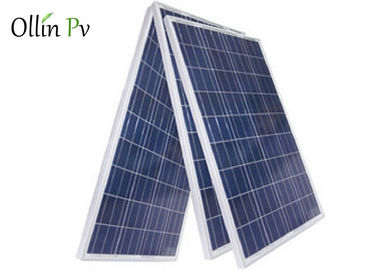

12V battery use solar panel Polycrystalline Solar Panel charge for street light system
Product features:
1. With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.High-transmittance low-iron tempered glass, anti-aging EVA,
excellent weathering resistance TPT,
2. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.,
beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Product field:
1. Gird-connected power generation system
2. Off-grid power generation system
3. Building-integrated power generation facilities
Products information
| Model | 105W | 110W | 115W | 120W | 125W | |||||
| Specifications | ||||||||||
| stc | noct | stc | noct | stc | noct | stc | noct | stc | noct | |
| Mmaximum Power(Pmax) | 105Wp | 77Wp | 110Wp | 81Wp | 115Wp | 84Wp | 120Wp | 88Wp | 125Wp | 92Wp |
| Mmaximum Power Voltage (Vmmp) | 18.0V | 16.8V | 18.0V | 16.8V | 18.0V | 16.8V | 18.0V | 16.8V | 18.0V | 16.8V |
| Mmaximum Power Current (Immp) | 5.83A | 4.58A | 6.11A | 4.82A | 6.39A | 5.01A | 6.67A | 5.24A | 6.94A | 5.48A |
| Open Circuit Voltage(Voc) | 22.5V | 21.2V | 22.5V | 21.2V | 22.5V | 21.2V | 22.5V | 21.2V | 22.5V | 21.2V |
| Open Circuit Current(Isc) | 6.30A | 5.08A | 6.60A | 5.32A | 6.69A | 5.56A | 7.20A | 5.80A | 7.50A | 6.04A |
| Power Tolerance(Positive) | 5% | 5% | 5% | 5% | 5% | |||||
| Module Efficiency STC | 14.25% | 14.40% | 14.67% | 14.93% | 15.05% | |||||
| Operating Temperature Range | -40℃ to +85℃ | |||||||||
| Mmaximum System Voltage | 1000V | |||||||||
| Series Fuse Rating | 15A | |||||||||
| Temperature coefficient of Pmax | -0.44%/℃ | |||||||||
| Temperature coefficient of Voc | -0.33%/℃ | |||||||||
| Temperature coefficient of Isc | 0.055%/℃ | |||||||||
| Operating Temperature Range | 45±2℃ | |||||||||
| Mechanical Characteristic | ||||||||||
| Cell Type | Monocrystalline 156*156mm | |||||||||
| Cell Number | 36(4x9) | |||||||||
| Dimensions(mm) | 670x600x35 | 670x620x35 | 670x670x35 | 670x720x35 | 670x760x35 | |||||
| Weight(Kgs) | 5.00 | 5.10 | 5.50 | 5.85 | 6.20 | |||||
| Front Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||||||
| Frame Type | Anodized Aluminum Alloy | |||||||||
| Junction Box Protection Class | IP 67 Rated | |||||||||
| Cconnector Type | MC4 | |||||||||
| Output Cables | 2.5 mm2, Length: 900mm | |||||||||
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our
main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters,
Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast delivery and best service!
Application
Widely used on small dry camp and off-grid ligthing applications
Easy Installation with pre-drilled hole.
Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection
against environmental particles and low pressure water jets).
Resistance to Salt Corrosion and Humidity
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as
well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame
and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
Warranty: 5-year material and workmanship warranty
