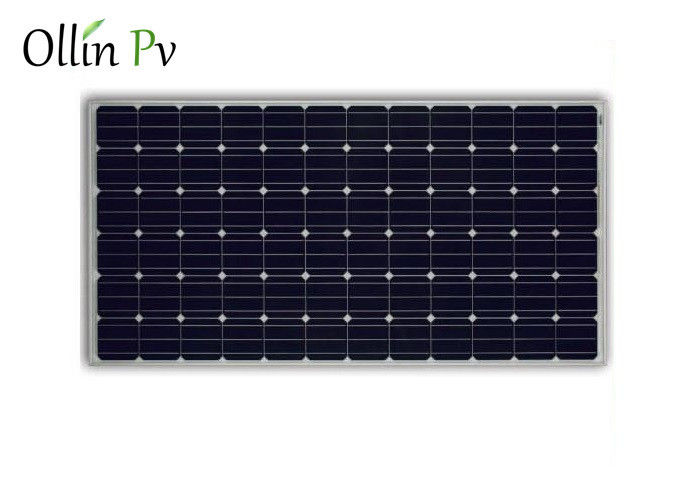

Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength

Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength
Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength

Large Image :  Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-72M-320
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton, 400pcs per 20ft container.
Delivery Time: 20DAYS
Supply Ability: 2000PCS PER WEEK

Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength

Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1950*990*40mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Weight: 23.0kg
High Light:

mono silicon solar panels

,

monocrystalline solar cells

 For roof mounted sun power system 320Watt Monocrystalline Solar Module charged 36v battery water pump


Product Feature:

1. High cell efficiency with quality silicon materials for long term output stability and reliability.

2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

3. Unique frame design with high mechanical strength for easy Installation.

4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient

protection from the severest environmental conditions, PET sheet imported from Toyo Japan

with advanced encapsulating material

5. Outstanding electrical performance under high temperature and low irradiance conditons

6. Excellent performance in harsh weather,Outstanding electrical performance under high

temperature and low irradiance


Detailed Product Description



Type M325 M320 M315 M310 305 M300 M295 M290 M285 M280
Wattage(W) 325 320 315 310 305 300 295 290 285 280
Open Circuit Voltage(V) 45.30 45.20 45.10 45 44.9 44.8 44.6 44.5 44.4 44.2
Short Circuit Current(I) 8.87 8.79 8.71 8.97 8.87 8.8 8.73 8.67 8.6 8.49
Maximum Power Voltage(V) 37.00 36.80 36.60 36.4 36.2 36.1 35.9 35.8 35.7 35.5
Maximum Power Current(I) 8.78 8.70 8.61 8.52 8.43 8.32 8.22 8.11 7.99 7.89
Cell Efficiency 18.90% 18.60% 18.31% 18.02% 17.73% 17.44% 17.15% 16.86% 16.57% 16.28%
Module Efficiency 16.63% 16.48% 16.23% 15.97% 15.71% 15.45% 15.20% 14.94% 14.68% 14.42%
Maximum System Voltage DC1000V
Temperature Coefficient of Voc -0.27%/°C
Temperature Coefficient of Isc +0.045%/°C
Temperaturecoefficient of Pmax -0.408%/°C
Maximum Series Fuse Rating 15A
Number of Cells 72(6*12) Mono Crystalline silicon, 156*156mm(6 inches)
Junction Box Ip67 rated/with 6 bypass diodes
Cable 4.0mm2
(0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches))
Tempered Glass 3.2mm(0.13inches)tempered glass
Cell Encapsulation EVA(Ethylene-vinyl-Acetate)
Back Sheet composite film
Frame Anodized aluminum alloy
Dimension 1957*992*50mm(77.05*39.06*1.97inches)
Maximum Surface Load Capacity 5400pa
Hail maximun diameter of 25mm with impact speed of 23m-s-1
Temperature Range -40°C to + 85°C
Weight 23.0kg(50.7bs)

Unique Frame Design Monocrystalline Solar Module With High Mechanical Strength 0

Company Profile:

We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our

main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters,

Solar LED lights, and so on.

What we can provide: High quality and very competitive price, fast delivery and best service!

A trustable and reliable supplier for your business. We have already exported our products around the world

includes Russian, Middle East, South American, Southeast Asia and so on.

For any details, please don't hesitate to contact me any time!

FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?

A:Sample needed 7-10days, mass production time needed about 20days
Q3. Do you have any MOQ limit ?

A: 1pc for sample checking available.
Q4. How do you ship the goods and how long does it take to arrive ?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

Airline and sea shipping for option.
Q5. Is it OK to print my logo on led light product ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on the sample.
