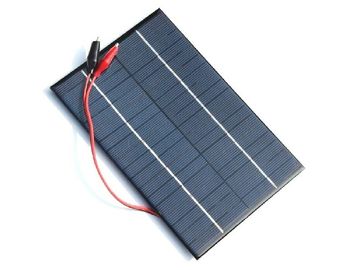

Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material

Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material
Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material

Large Image :  Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-12M-1w
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: carton,
Delivery Time: 20DAYS
Supply Ability: 230000PCS PER WEEK

Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material

Description
Material: Polycrystalline Silicon Color: Dark Blue
Dimension: 110x80mm Frame: Anodized Aluninium Alloy
Epoxy: Solar Panels Average Power (Watts): 1W
Current (Amps): 9V
High Light:

mini solar panels

,

mini solar cell

DIY 1w 6v Epoxy Resin Solar Panel mini solar cell charge for electric torch Electric car toys



Remark:





1. Normally we use standard black colour base board, but the colour might be tiny different because of



different producing batch.



2. To achieve a certain parameter, the arrangement of the solar cell silicon wafers might be with tiny



difference, but the specification is the same as described.



3. The solar cell panel will be covered by PE film, some may with air bubble under the film, it will not effect



the performance, you can remove the film, just like the film on the cellphone panel.



4. The colour of silicon solar cell is blue or black.



5. As solar panel, the sunlight strength will effect the performance of the solar cell, please use it in good



sunlight.





Packaging & Delivery





Packaging Detail:Bubble bag outer Carton





Delivery Detail:10days





Material:Polycrystalline Silicon





Size:110x80mm





Max. Power:1W





Working Voltage:6V





Working Current:200mA





Technology:Epoxy Resin Encapsulation





Product structure:Epoxy Resin + Solar Cells + PCB Board





PCB Material:Insulative, environmental and anti-distorted chipboard and fiberboard





Test Condition:outdoor: AM1.5/1000W/m2/Temperture 25°C Lifetime:around 4-5 years





Application scope:Advertising, mobile charger, solar lights, toys, bags, flashlight etc





Epoxy solar panel structure





It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy



resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,





1. Epoxy Resin AB Glue 2. Solar Cells 3. PCB Board









Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material 0Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material 1

Small Size Resin Solar Panel / Epoxy Resin Panels Insulative PCB Material 2







FAQ



Q1: Are you a factory or trading company?



A: We are a factory.



Q2: Where is your factory located? How can I visit there?



A: Our factory located in Yuyao City, China. Welcome to visit us.



Q3. Can I have a sample order for solar panel?



A: Yes, we welcome sample order to test and check quality.



Q4: Could you print our company LOGO on the nameplate and package?



A:  Yes, we offer OEM service.



Q5. What about the lead time?



A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 2MW.



Q6: Do you offer guarantee for the products?



A: Yes, we offer 2-5 years warranty for our products
