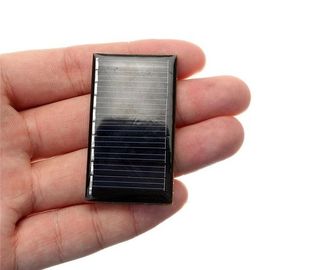

DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger

DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger
DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger

Large Image :  DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: negotiation
Packaging Details: carton,
Delivery Time: 20DAYS
Supply Ability: 230000PCS PER WEEK

DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger

Description
Material: Polycrystalline Silicon Color: Dark Blue
Dimension: OEM Epoxy: Solar Panels
Shape: Round Application Field: Solar Toys; Solar Mobile Phone Chargers, Solar Lanterns, Solar Power Banks; Solar Lawn Lights Etc.
High Light:

mini solar panels

,

small solar panels

Solar Mobile Phone Chargers Epoxy Resin Solar Panel charging for for toys DIY tools led garden light Solar Lanterns



Features




1): Epoxy resin solar panel is made of monocrystalline or polycrystalline silicon. The encapsulation material



are made of Epoxy Resin. Characterized by anti-humidity, insulation, excellent transparence and anti-aging,



as well as smoothness, no bubble and neat apperance. Hard appearance; long-time life, high-performance



to week light; widely used in lamp series, no power source sector.



2): Epoxy resin solar panels are easily to install; friendly environmental. High efficiency solar cells, Non-



stick protective film.



3): Epoxy resin solar panels can be widely used in solar lawn lamps, solar toys, solar chargers and solar



signal lights.


Item No. Max Power Rated Voltage Output Voltage Dimension Net Weight
0.5V100MA 0.05W 0.5VDC   53x18x3mm 0.003kg
1V85MA 0.085W 1VDC   30x25x3mm 0.0022kg
1.5V400MA 0.65W 1.5VDC Charge for 1.2V Battery 80x60x3mm 0.018kg
2V130MA 0.26W 2VDC 54x54x3mm 0.009kg
2V50MA 0.1W 50x34x3mm 0.008kg
3V120MA 0.36W 3VDC   60x55x3mm 0.011kg
5V30MA 0.15W 5-5.5VDC Charge for 3.6V-3.7V Battery 53x30x3mm 0.005kg
5V60MA 0.3W 68x36x3mm 0.01kg
5V150MA 0.75W 99x69x3mm 0.02kg
5.5V50MA   80x35x3mm 0.01kg
5.5V60MA 0.3W 100x28x3mm 0.01kg
5.5V100MA 0.55W 84.5x55.5x3mm 0.018kg
5.5V120MA 0.66W 80x60x3mm 0.02kg
6.5V90MA 0.6W 6-6.5VDC 120x70x3mm 0.03kg
6V100MA 0.6W 120x38x3mm 0.016kg
6V330MA 2W 136x110x3mm 0.06kg
6V500MA 3W 145x145x3mm 0.07kg
6V580MA 3.5W 135x165x3mm 0.077kg
6V750MA 4.5W 145x145x3mm 0.07kg
8V150MA 1.2W 8VDC Charge for 6V Battery 145x95x3mm 0.05kg
12V250MA 3W 12VDC Charge for 8V Battery 145x145x3mm 0.07kg
18V190MA 3.5W 18VDC Charge for 12V Battery 165x135x3mm 0.082kg
18V200MA 4.2W 200x130x3mm 0.109kg





Advantages of PET solar panel





1. High conversion rate, high efficiency output



2. Build your DIY powered models, solar display, solar light and solar toys, etc



3. Fit for preliminary study experiment with solar energy, also fit for the customer to do a variety of products



available, Such as: solar lawn light, solar landscape lights, solar mobile charger, solar flashlight, and a



variety of small solar toys.



4. Use this solar panel to power a convenient appliance with free green energy from the sun.



High-efficiency encapsulated solar panel, providing enough power for DIY Solar panel kit with battery, power



small motors or other loads; perfect devices for science project


 DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger 0DIY Tools Small Epoxy Resin Solar Panel / Solar Mobile Phone Charger 1

FAQ





Q1. Can I have a sample order for solar panel 3V?



A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?



A: Sample need 7-15 days, mass production time needs 2-3weeks for order quantity more than.



Q3. Do you have any MOQ limit for solar panel order?



A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?



A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping



also optional.



Q5. How to proceed an order for solar panel?



A: Firstly let us know your requirements or application.



Secondly We quote according to your requirements or our suggestions.



Thirdly customer confirms the samples and places deposit for formal order.



Fourthly We arrange the production.
