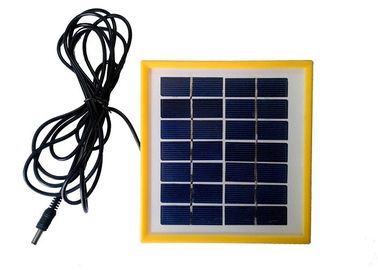

10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification

10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification
10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification

Large Image :  10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36P-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK

10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification

Description
Material: Polycrystalline Silicon Color: Black
Dimension: 210*195*18mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%
High Light:

solar pv modules

,

marine solar panels

10w poly Solar module charging for garden light and blinker with 5m white plastic frame PV Solar Panels



Features:



ENHANCED EXTERNAL LOAD / IMPACT



Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)



Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)



Hail Impact : 30.7m/s (speed ball)



POWER ADVANTAGE



25-year, linear power warranty



> 97.5% nominal power during 1st year



Positive tolerance up to +5W



PID RESISTANCE



Enhanced potential induced degradation



FIRE SAFETY



UL1703 Fire Classification : Type 1, Type 2



ENVIRONMENT RESISTANCE



Suitable for extreme conditions



Resistant to high salt mist and ammonia



AVAILABLE IN TWO THICKNESSES



Standard (30T) and 40T for more durability


Specifications:


10w PV Solar Panels / Poly Solar Cell Anti - Corrosion UL 1703 Fire Classification 0

ITEM NO 3W/9V
MONO or POLY poly
Maximum power (Wp) 3wp
Maximum power voltage (V) 9
Maximum power current (A) 0.33
Open circuit voltage (V) 10.8
Short circuit current (A) 0.36
Number of cells (Pcs) 18
Size of module (mm) 210*195*18
Brand Name of Solar Cells HT
Maximum system voltage (V) 715
Temperature coefficients of Isc (%) 0.065+/-0.015%/°C
Temperature coefficients of Voc (%) -(2.23+/-0.1)mv/ °C
Temperature coefficients of Pm (%) -(0.5+-0.05)/ °C
Temperature coefficients of Im (%) +0.1/ °C
Temperature coefficients of Vm (%) -0.38/ °C
Temperature Range -40°C~+85°C
Tolerance Wattage (e.g. +/-5%) +/-5%
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m height
Weight per piece (kg) 1.1
Length of Cables (mm)
Cell Efficiency (%) more than13%
Module Efficiency (%) more than 8%
Output tolerance (%) +/-5%
Frame (Material, Corners, etc.) Aluminum
Standard Test Conditions AM1.5 100mw/cm2 25°C
Warranty 2 years product warranty and 25years 80% of power
FF (%) 75%
Packing 10PCS/ CTN
Unit Price



Advantages



1. All solar module produces without any aberration or bubble.



2. Back sheet is TPT&PET, and the thickness is 0.3mm.



3. The thickness of EVA is 0.4mm,better than other company use 0.3mm or 0.35mm.We use new EVA



material, not the overdue, the overdue EVA will influence the performance and lifespan of solar panel.



4. New aluminum with 1.00mm thickness, high hardness, good impact resistance. Some company will use



bad recycle aluminum.



5. Tempered glass with 3.2mm has advantages of high strength, impact resistance,good light transmittance.



6. The solar cells made in Taiwan, high efficiency, low attenuation,the attenuation is less than 10% within 5



years and less than 15% within 10 years.



7. The junction box has good waterproof, good anti-aging,PV wire. The PV wire is good for anti-aging and



anti-corrosion, it's better than the normal wire.



8. Package by 7 layers thick carton, moisture proof and anti-cracking. Two pieces in one carton, easy to



delivery.



How Do Solar Panels Work?



When photons hit a solar cell, they knock electrons loose from their atoms. If conductors are attached to



the positive and negative sides of a cell, it forms an electrical circuit. When electrons flow through such a



circuit, they generate electricity. Multiple cells make up a solar panel, and multiple panels (modules) can be



wired together to form a solar array. The more panels you can deploy, the more energy you can expect to



generate.





Payment







Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal

Amount lower than 5000usd
West Union
Delivery Time
15~20days after receiving payment for one container
