190 Watt Monocrystalline Solar Module For Grid - Connected Power Generation System

190 Watt Monocrystalline Solar Module For Grid - Connected Power Generation System

  • 190 Watt Monocrystalline Solar Module For Grid - Connected Power Generation System
190 Watt Monocrystalline Solar Module For Grid - Connected Power Generation System
Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-72M-190
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton, 400pcs per 20ft container.
Delivery Time: 20DAYS
Supply Ability: 2000PCS PER WEEK
Contact Now
Detailed Product Description
Dimension: 1580*808*40mm Front Glass: 3.2mm High Transmissiontempered Glass
Material: Monocrystalline Silicon Frame: Anodized Aluninium Alloy
Weight: 23.0kg Color: Black
High Light:

monocrystalline silicon solar panels

,

monocrystalline solar cells

190Watt Monocrystalline silicon Gird-connected power generation system used



190Wp Mono Crystalline Solar Panel





Key Features



1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT

2. Anodized quality aluminum frame, beautiful appearance

3. Wind resistance, pressure resistance, high conversion efficiency

Product field:

1. Gird-connected power generation system

2. Off-grid power generation system

3. Building-integrated power generation facilities





Detailed Product Description

ELECTRICAL PERFORMANCE
Module type PLM-200M-72
Power output W 190 195 200 205 210
Power output tolerances % 0-3
Voltage at Pmax V 36.83 37.43 37.89 38.19 38.47
Current at Pmax A 5.16 5.21 5.28 5.37 5.46
Open-circuit voltage V 45.02 45.26 45.48 45.65 45.80
Short-circuit current A 5.56 5.62 5.66 5.73 5.81

OPERATING CONDITIONS
Max.system voltage 1000V
Limiting reverse current 15A
Operating temperature range -40℃ to 85℃
Max.static load front 5400Pa
Max.static load back 2400Pa
Max.hailstone impact (diameter/velocity) 25mm/23m/s

MECHANICAL CHARACTERISTICS
Front cover(material/thickness) Low-iron tempered glass / 3.2mm
Backsheet(color) white
Cell(quantity/material/dimensions) 72 / monocrystalline silicon / 125*125mm
Frame(material/color) Anodized aluminum alloy / silver
Junction box(protection degree) >= IP65
Cable&Plug connectors 900mm / 4mm² &MC4 compatitible / IP67

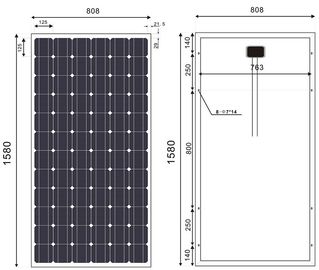

Module Dimensions (L /W /H ) 1580mm*808mm*35mm
Module Weight 15.0kg





Product features:



Monocrystalline Solar Panel will give you the most efficiency per space and have the ability to withstand extreme elements and severe weather . This monocrystalline panel is equipped with MC4 leads coming from the panel, compatible with MC4 Adaptor Cables so you can set up your system smoothly . This solar panel also has the capability of withstanding heavy snow and strong wind loads .



190W solar panel has several uses including marine , dry camp , and other off-grid applications. Whether you are going camping in the mountains or taking a trip to the beach , this panel can be a great start to your off-grid system .





Why Choose US?



1. Quality Focused

“Making Reliable Products” is the core business fundamental of OLLIN PV. We implement an IEC complied quality system in the production for the unique purpose: OLLIN PV ONLY DELIVER RELIABLE SOLAR PRODUCTS. For more details please refer to OLLIN PV Quality Control System.



2. Customer-centric Services

OLLIN PV rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.



3. ISO Accredited Factory

With total area of 15000 m2, OLLIN PV’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.



4. System-wide Solutions

In association with partners, OLLIN PV provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.



5. Professional Team

OLLIN PV is created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
