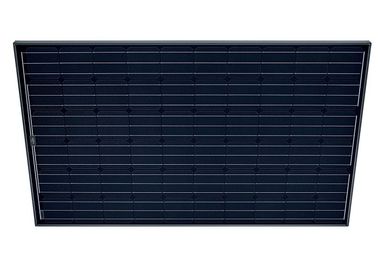

Class A Black Solar PV Panels / Solar Energy Panels IP65 Rated Junction Box

Class A Black Solar PV Panels / Solar Energy Panels IP65 Rated Junction Box

  • Class A Black Solar PV Panels / Solar Energy Panels IP65 Rated Junction Box
Class A Black Solar PV Panels / Solar Energy Panels IP65 Rated Junction Box
Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-60p-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 1PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK
Contact Now
Detailed Product Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1940*990*45mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Operating Temperature: -40℃ To+85℃
High Light:

residential solar panels

,

high efficiency solar panels

 300w mono Black Solar PV Panels New-Tech in stock 300W off- grid Solar water Pumping system


Product Features:

1. 0 to +5w positive tolerance power

2. module certified to withstand high snow loads, up to 5400pa

3.advanced glass and solar cell surface texturing allow for excellent performance in

low-light environments.

4. anodized aluminum frame improving corrosion resistance

5. our ip67 rated junction box improves module performance and stability

6. we provide a 3years materual and work manship gurantee for our modules. in

addition 90% power output gurantee for 10 years and 80% power output gurantee

for 25 years of the modules life are provided


Specifications:


Solar Panel Parameters 300W

Optimized working voltage 37.08V

Optimized working current 8.09A

Open circuit voltage 45.90V

Short circuit current 8.80A

Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.


Terms of Payment


Value of goods Terms of Payment
Less 5,000 dollars 100%T/T advance
5,000-20,000 dollars 30% T/T advance
More 20,000 dollars T/T or L/C at sight



How Do Solar Panels Generate Electricity?


PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction

around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative

side of the battery, through the lamp, and return to the positive side of the battery.

With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,

much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to

a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,

hydroelectricity, nuclear, coal, wind, or solar.

AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to

transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into

the AC grid? We use an inverter.

Class A Black Solar PV Panels / Solar Energy Panels IP65 Rated Junction Box 0
