| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1set |
| Price: | negotiation |
| Delivery Time: | 20days |

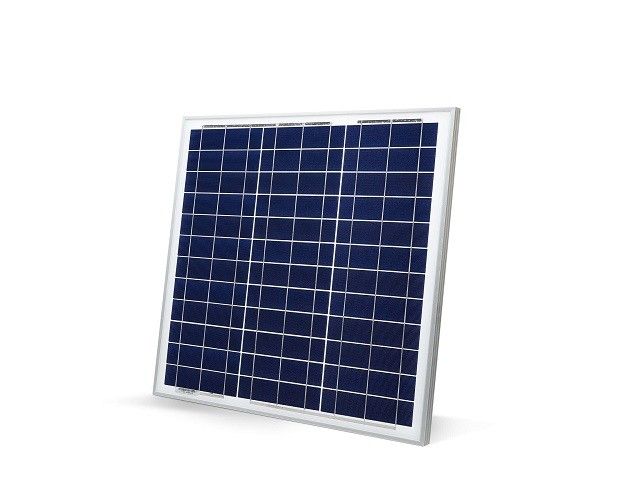

| Solar Panel Parameters | OL-30W-M |
| Optimized working voltage | 21.6V |
| Optimized working current | 1.69A |
| Open circuit voltage | 18V |
| Short circuit current | 1.78A |
| Nominal power | 30W |
| Operating temperature | -40℃ to+85℃ |
| Maximum system voltage | 1000VDC(IEC)/600VDC(UL) |
| Series fuse rated value | 20A |
| Power tolerance | ±3% |
| Cell specification | |
| Arrangement quantity | 36(3×12) |
| Solar panel dimension | 650*350*23mm |
| Weight | 2.5.0.0kg |
| Glass specification | 3.2mm(0.13inch) tempered glass |
| Frame | Anodised aluminium alloy |
| Rated operating temperature | 45±2℃ |
| Pmax temperature parameter | -(0.48±0.05)%/℃ |
| Voc temperature coefficient: | -(0.34±0.1)%/℃ |
| Isc temperature coefficient | 0.04±0.01%/℃ |
| Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃. | |
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our
main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters,
Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast delivery and best service!
|
|
