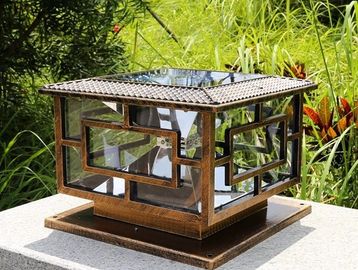

Led Garden Lights Silicon Solar Panels Polycrystalline 185 X 185 X 17mm

Led Garden Lights Silicon Solar Panels Polycrystalline 185 X 185 X 17mm

  • Led Garden Lights Silicon Solar Panels Polycrystalline 185 X 185 X 17mm
  • Led Garden Lights Silicon Solar Panels Polycrystalline 185 X 185 X 17mm
Led Garden Lights Silicon Solar Panels Polycrystalline 185 X 185 X 17mm
Product Details:
Place of Origin: zhejiang PR, CHINA
Brand Name: OLLIN PV
Certification: CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: negotiation
Packaging Details: pallet
Delivery Time: 20days
Supply Ability: 80000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Solar Cell:: Poly Crystalline Solar Cell Item Type: Garden Light
Input Voltage(V): 9V Application: Street/Square/Highway/Park
Cell Number:: 2*9(18cells) Weight:: 0.5KG
Warranty: 2 Years Battery: 5V 5 Ah
High Light:

industrial solar panels

,

monocrystalline and polycrystalline solar panel



3W  Poly solar panel



Size: 185x185x17mm

Voltage: 9V



Features:

1. high quality and favorable price

2. portable and light weight

3. charge DC appliances, such as: solar lantern, solar fan



Description:

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Monocrystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance


Packaging & Shipping



1.Packaging: standard carton plus wooden case or pallet.
2.Shipping: (1). Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
(2). By air or by sea for batch goods.
3.Delivery: Goods to be ready within 10~15 days depending on order quantity.





Application:

1. Gird-connected power generation system

2. Off-grid power generation system

3. Building-integrated power generation facilities

We have a wild range of successful project all over the world.

We have advanced ,mature and stable supply production line, support your request on solar market.

Our Services

20 years quality guarantee of solar product.

Payment:L/C,T/T,West Union, MoneyGram,Paypal.

Display board and other kind of advertisement products are provided for promoting the solar prodcuts.

Popular model will be suggested,keep our customer updated for the information about the solar power products.


ITEM NO 3W/9V
MONO or POLY poly
Maximum power (Wp) 3wp
Maximum power voltage (V) 9
Maximum power current (A) 0.33
Open circuit voltage (V) 10.8
Short circuit current (A) 0.36
Number of cells (Pcs) 18
Size of module (mm) 210*195*18
Brand Name of Solar Cells HT
Maximum system voltage (V) 715
Temperature coefficients of Isc (%) 0.065+/-0.015%/°C
Temperature coefficients of Voc (%) -(2.23+/-0.1)mv/ °C
Temperature coefficients of Pm (%) -(0.5+-0.05)/ °C
Temperature coefficients of Im (%) +0.1/ °C
Temperature coefficients of Vm (%) -0.38/ °C
Temperature Range -40°C~+85°C
Tolerance Wattage (e.g. +/-5%) +/-5%
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m height
Weight per piece (kg) 1.1
Length of Cables (mm)
Cell Efficiency (%) more than13%
Module Efficiency (%) more than 8%
Output tolerance (%) +/-5%
Frame (Material, Corners, etc.) Aluminum
Standard Test Conditions AM1.5 100mw/cm2 25°C
Warranty 2 years product warranty and 25years 80% of power
FF (%) 75%
Packing 10PCS/ CTN
Unit Price



SOLAR PANEL





-Poly/mono- crystalline cell panels both available.



-A grade cells adopted to create higher efficiency.


-High light transmission, low iron.



-Tempered glass, anti-aging.



-Strong structure to withstand high wind pressure, hail and snow load.



-High compact resistant aluminum alloy frame.





System Controller



-High efficiency LED driver-built in.


-Wireless remote control for lighting modifications.


-Dimming and multi time phase setting.


-Multi protection functions.


-IP68 waterproof.
