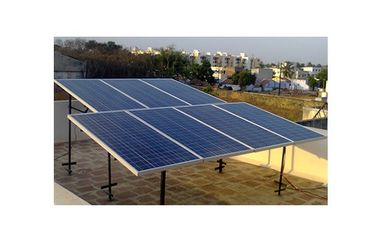

Modern Residential Solar Power Systems 12V/12AH SMF Lead Acid Battery For Water Pump

Modern Residential Solar Power Systems 12V/12AH SMF Lead Acid Battery For Water Pump

  • Modern Residential Solar Power Systems 12V/12AH SMF Lead Acid Battery For Water Pump
Modern Residential Solar Power Systems 12V/12AH SMF Lead Acid Battery For Water Pump
Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE ROSH
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: carton
Delivery Time: 20days
Supply Ability: 300 Set/Sets per week
Contact Now
Detailed Product Description
Solar Panel: 190W Solar Panel Load Power (W): 1000W
Inverter: Off Grid Pure Sine Wave Charging Time: 8-10 Housr To Charge The Battery Fully
Battery: 12V/12AH SMF Lead Acid Battery Application: Water Pump
High Light:

residential solar electricity systems

,

complete solar power system

modern home solar power planet On-grid solar energy package Residential Solar Power Systems





Blank Grid-Tied PV System





Note: All numbers are retied, manufacturers’ specifications, or nominal unless otherwise specified.



Photovoltaics: Eighteen Kyocera KC200GT, 200W each at 26.3 Vmp, wired in two 9 module series strings



for 3,600W total at 236.7Vmp



Inverter: Aurora PVI-3600-US, 3,600W, 600VDC max. Input, 240VAC output.



KWH Meter: To utility grid



AC Disconnect



Fuses: Two, 60A



Lighting Arrestor



AC Service Entrance: To 120/240 VAC loads



1.1KW Grid Tied Solar System Specification

SOLAR PANEL
Solar panel power Pm 6*190WP
Power allowance ±3%
Optimized working voltage Vm 36.6V
Optimized working current Im 5.19A
Open circuit voltage Voc 45.1V
Short circuit current Isc 5.57A

GRID TIED INVERTER
Inverter Input (DC)
Max. DC power 1100W
Max. DC voltage 500V
Max. input current 8.8A
Number of MPP trackers/Strings per MPP tracker 1 1
MPPT voltage range (at rated power) 120~425V
Shutdown voltage/Start voltage 70/120V

Inverter Output (AC) Inverter Output (AC)
AC nominal power 1000W
Max. AC power 1000W
Max. AC current 5.5A
Nominal AC voltage / range 230 / 180~270V
AC grid frequency / range 50 / 47~52Hz
Power factor (cosφ) 1
Total harmonic distortion (THDi)(at nominal power) <3%
Inverter Efficiency Inverter Efficiency
Max. efficiency 96.60%
Euro efficiency 95.50%
MPPT efficiency 99.90%
Inverter General data
Dimensions (W / H / D) 285*385*145mm
Weight [kg] 15Kg
Operating temperature range -20~+60 (derating at 45 °C)
Ingress protection IP65
Topology transformerless
Internal consumption(night) 0
Cooling concept Convection
Noise (typical) <30 dB
LCD display Backlight, 16*2 Character LCD
Communication port RS232

SOLAR PANEL MOUNTING(Pitch roof )
Rail 2600mm*4pcs
Hook 12pcs
Middle clamp 10pcs
End clamp 4pcs
Connect of rail 2pcs
Grounding lug (Optional) 5pcs
Earthing clips (Optional) 5pcs

ELERTRIC BOX (Optional) AC/DC Circuit Breakers,Lighting arrestors, Electric meter





Solar energy, solar air heating, solar cooking, solar pumping, solar power, solar hot woter, wind power, solar



pool heating,



others: heat energy, winter solar inssues, pure/true vs modified sine wave inverters, how to make solar



cells, insulation, how to find true south, shading/obstables, how to make a sun finder, how to square a solar



array frame, mini solar tower.





Stay energized even when the grid is down





When the grid is available, power produced by your solar system is used by the home and excess energy is



sent into the utility grid. In the event of a power outage the backup inverter will automatically turn on to



power critical appliances such as the fridge/freezer, lights, well pump, computer, phone and more. The



combination of solar energy and battery storage works seamlessly to provide power to essential appliances



during an outage, working similar to an off-grid system. A backup gas generator could be incorporated for an



extra degree of independence to protect against long-term power outages.

Modern Residential Solar Power Systems 12V/12AH SMF Lead Acid Battery For Water Pump 0
