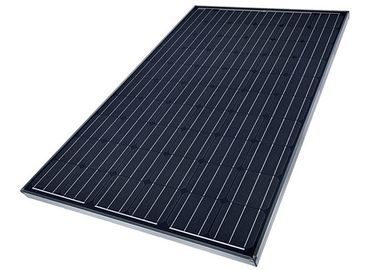

Parking Lots Black Solar PV Panels 156 * 156 Monocrystalline Solar Cells

Parking Lots Black Solar PV Panels 156 * 156 Monocrystalline Solar Cells

  • Parking Lots Black Solar PV Panels 156 * 156 Monocrystalline Solar Cells
Parking Lots Black Solar PV Panels 156 * 156 Monocrystalline Solar Cells
Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OLLIN PV-270w
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: 1 PCS PER CARTON
Delivery Time: 20DAYS
Supply Ability: 1200UNITS PER WEEK
Contact Now
Detailed Product Description
Cell Material: Monocrystalline Silicon Cell Array: 6x10
Cell Color: Black Frame: Black Color Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector
High Light:

solar power panels

,

high efficiency solar panels

Black Solar PV Panels 270Watt Yingli brand solar cells with Metal bracket used for Solar Lighting for Parking lots

Product Description

Cell: Mono efficiency 16.83% cell

Application: Commonly use in remote home solar sysytem!

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing

and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature.

Mechanical Characteristics:


Dimensions: 1195mm(L) x 541mm(W) x 35mm(H)

Weight: 18kg

Solar Cells: 156*156 monocrystalline solar cells, 36 cells

Construction: Front: High-transmission 3.2mm tempered glass; Encapsulate: EVA; Back: TPT

Frame: Clear anodized aluminum alloy Color: Silver, Black, Brown, Golden, etc....





Detailed Product Description



Module Type OLPV250W OLPV255W OLPV260W OLPV270W OLPV280W
Maximum power 250WM 255WM 260WM 270WM 280WM
Max power voltage 36.54v 36.88v 36.9V 36.88v 36.9V
Max power current 29.74V 29.86V 29.94V 29.86V 29.94V
Open circuit voltage 8.96A 9.2A 9.35A 9.72A 9.99A
Short circuit current 8.3A 8.5A 8.66A 8.98A 9.33A
Module Efficiency 13.13% 14.14% 15.15% 16.16% 16.67%
Power Tolerance -0~+5W -0~+5W -0~+5W -0~+5W -0~+5W
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.





APPLICATIONS:

Solar power generating plant construction



Rural electrification,home solar systems


Power supply for tranffic signal light,security,gas industry


Battery charging system


Other industrial area,industrial and commercial applications


BIPV projects(hotel,hospital,villa,etc)





Packaging & Shipping:


1. Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in



transportations.



Package designed by Clients is welcomed.



2. Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.



Samples are Available for Testing and Market Test. OEM is welcomed for us!!!
