Plug And Play Caravan Roof Mounted Solar Panels Advanced EVA Encapsulation System

Plug And Play Caravan Roof Mounted Solar Panels Advanced EVA Encapsulation System

  • Plug And Play Caravan Roof Mounted Solar Panels Advanced EVA Encapsulation System
Plug And Play Caravan Roof Mounted Solar Panels Advanced EVA Encapsulation System
Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-72M-90
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: heavy duty padded carry bag and carton
Delivery Time: 20DAYS
Supply Ability: 1200UNITS PER WEEK
Contact Now
Detailed Product Description
Cell Material: Monocrystalline Silicon Cell Color: Black
Frame: Anodized Aluminum Alloy Front Sheet: High Transmissions Low Iron Tempered Glass
Back Sheet: TPE Quality Plastic Main Market: Asia Africa Southeast Asia
Junction Box: JB With 0.9m Wire And Connector Max. Power:: 60W 80W 120W 180W 240W
High Light:

foldable portable solar panels

,

fold away solar panels

Mono folding solar panel 90Watt black color solar cells with heavy duty padded carry bag



Solar Module



1. Rated Maximum Power 90W



2. Current at Pmax (lmp) 5.18A



3. Volatage at Pmax (Vmp) 17.4V



4. Short- Circuit Current(lsc) 5.76A



5. Open- Circuit Voltage( Voc) 21.4V



6. Max System V 1000V



7. Max Senes Fuse Rating 10A



8. Application Class A



9. Nominal Operating Cell Temp -40 ℃ TO+85℃



10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.



11. Module efficiency : 16%



12.Warranty : 12 years/90%,25 years/80%, guaranteed 3years material and workmanship



13. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably



14. Excellent performance under low light conditions



15. Load test: module certified to wind and snow loads





Electrical Characteristics



Type Folded size Weight Specification
Max-power Volatage at Pmax Current at Pmax Open- Circuit Voltage

Short- Circuit

Current

Module MM KG W V A V

A

OLPV-200W 1200*540*70 20 200 18 10.53 22

11.37

OLPV-190W 190 18 10.15 22

10.96

OLPV-180W 180 18 9.62 22

10.38

OLPV-170W 1000*540*70 16 170 18 9.44 22

10.2

OLPV-160W 160 18 8.89 22

9.6

OLPV-150W 150 18 8.33 22

9

OLPV-120W 810*540*70 14 120 18 6.67 22

7.2

OLPV-110W 110 18 6.11 22

6.6

OLPV-100W 610*540*60 10 100 18 5.56 22

6

OLPV-90W 90 18 5 22

5.4

OLPV-80W 80 18 4.44 22

4.8

OLPV-60W 420*540*60 9 60 18 3.33 22

3.6

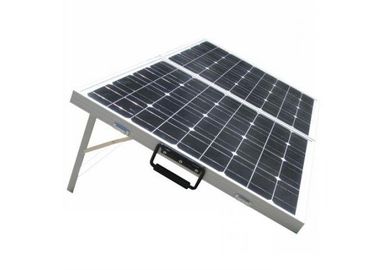

Plug And Play Caravan Roof Mounted Solar Panels Advanced EVA Encapsulation System 0





Where there is sunlight ,there is power supply!



The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..



The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.



EFFICIENCY



•Low voltage-temperature coefficient allows higher power output at high-temperature condition


•High efficient, high reliable solar cells ensure our product output stability





MATERIALS



•Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation


•The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions



•Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells



•Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition



•New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
