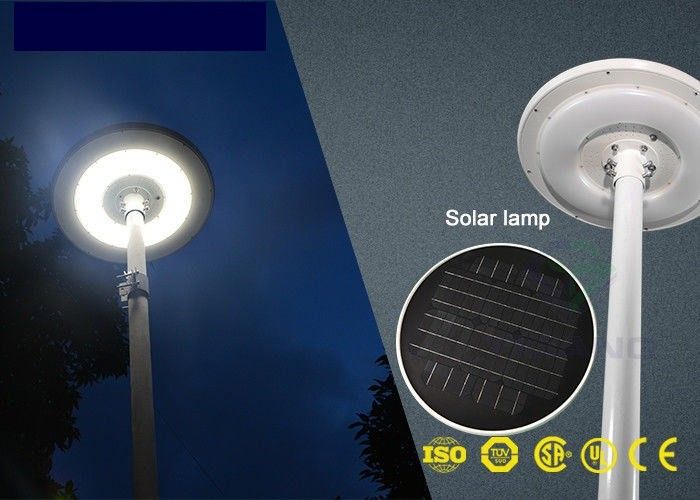

Solar Garden Light Mini Solar Panels Lightweight Sealed Against Corrosion

Solar Garden Light Mini Solar Panels Lightweight Sealed Against Corrosion

  • Solar Garden Light Mini Solar Panels Lightweight Sealed Against Corrosion
Solar Garden Light Mini Solar Panels Lightweight Sealed Against Corrosion
Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: negotiation
Packaging Details: carton,
Delivery Time: 20DAYS
Supply Ability: 230000PCS PER WEEK
Contact Now
Detailed Product Description
Material: Polycrystalline Silicon Color: Dark Blue
Dimension: OEM Frame: No Frame
Epoxy: Solar Panels Shape: Round
High Light:

circular solar panels

,

small solar cells

 solar garden light with 3W Round Solar Panel 9V black color poly solar cells

Specifications



1. Round solar panel



2. Sealing material: epoxy resin



3. Output: 6V 110mA



4. Diameter: 100mm



5. CE certificate



Diameter 100mm 6V 110mA Epoxy Round Solar Panel Features

  • Mini size & light-weighted
  • Laser cut to most accurate size
  • Sealed against corrosion
  • Water-proof for outdor use
  • Every piece is tested before shipping
  • Custom designed to fit the voltage and ampere requirements of each specific product
  • Can print buyer's logo without increasing the price
  • Wires & connectos availabe if required
  • CE certificate

Solar Garden Light Mini Solar Panels Lightweight Sealed Against Corrosion 0



Item No. Max Power Rated Voltage Output Voltage Dimension Net Weight
0.5V100MA 0.05W 0.5VDC   53x18x3mm 0.003kg
1V85MA 0.085W 1VDC   30x25x3mm 0.0022kg
1.5V400MA 0.65W 1.5VDC Charge for 1.2V Battery 80x60x3mm 0.018kg
2V130MA 0.26W 2VDC 54x54x3mm 0.009kg
2V50MA 0.1W 50x34x3mm 0.008kg
3V120MA 0.36W 3VDC   60x55x3mm 0.011kg

5V30MA 0.15W 5-5.5VDC Charge for 3.6V-3.7V Battery 53x30x3mm 0.005kg
5V60MA 0.3W 68x36x3mm 0.01kg
5V150MA 0.75W 99x69x3mm 0.02kg
5.5V50MA   80x35x3mm 0.01kg
5.5V60MA 0.3W 100x28x3mm 0.01kg
5.5V100MA 0.55W 84.5x55.5x3mm 0.018kg
5.5V120MA 0.66W 80x60x3mm 0.02kg
6.5V90MA 0.6W 6-6.5VDC 120x70x3mm 0.03kg
6V100MA 0.6W 120x38x3mm 0.016kg
6V330MA 2W 136x110x3mm 0.06kg
6V500MA 3W 145x145x3mm 0.07kg
6V580MA 3.5W 135x165x3mm 0.077kg
6V750MA 4.5W 145x145x3mm 0.07kg
8V150MA 1.2W 8VDC Charge for 6V Battery 145x95x3mm 0.05kg
12V250MA 3W 12VDC Charge for 8V Battery 145x145x3mm 0.07kg
18V190MA 3.5W 18VDC Charge for 12V Battery 165x135x3mm 0.082kg
18V200MA 4.2W 200x130x3mm 0.109kg



How to Match Voltage of Solar Panel and Battery:



Battery Solar Panel
1.2V 2~2.5V
2.4V 3.5~4V
3.6V 5~6V
6V 7.5~9V
12V 15~18V



Note:


1. When the voltage of your solar panel doesn't satisfy your storage battery, you can take two or more



same solar panels together in series.


2. Such as, two 5.5V solar panel take together in series, so its voltage is 11V. When the voltage of solar



panel satisfy your storage battery.


3. In order to speed up the rate of charge, you can take two or more solar panel together parallel



connection.
