|Place of Origin:||zhejiang Pr, China|
|Brand Name:||OLLIN PV|
|Certification:||CE ROSH ISO|
|Minimum Order Quantity:||one unit|
|Packaging Details:||0NE PCS PER CARTON|
|Supply Ability:||1500UNITS PER WEEK|
|Cell Material:||Monocrystalline Silicon||Cell Color:||Black|
|Front Sheet:||High Transmissions Low Iron Tempered Glass||Back Sheet:||TPE Quality Plastic|
|Main Market:||Asia Africa Southeast Asia||Junction Box:||JB With 0.9m Wire And Connector|
circular solar panels,
small solar cells

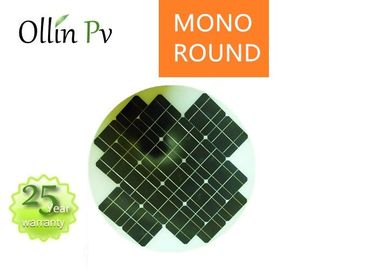

street light charger PV Solar Cells 30W 40W 50w 60W 70W round Shape solar panel ROUND Solar Panels
1. With advanced materials and equipment, our modules are designed and manufactured in consistency
with the IEC 61215:1993 standards which can guarantee the excellent electrical performance and the
product life of 25 years.
2. A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.
3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long
endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity TPT for different
4. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.
5. A multifunction box ensure safe connection.
6. The exterior design and electrical performance of the module can meet the requirements of superior
|Product's Basin information :|
|Product: Solar panel||Model Type: OL-75-36M-R||Photo:|
|Weight: 8KGS||Cell Type: Mono(36PCS cells)|
|Maximu power voltage(Vmp): 18V|
|Maximu power current(Imp): 4.17A|
|Open circuit voltage(Voc): 21.6V|
|Short circuit voltage(Isc): 4.58A|
|Maximu system voltage: DC 1000V|
|Power Tolerance: ±3%|
|Normal Operting Cell Temperature: 45±2℃||Note: the picture like this|
|Front Glass:3.2mm high transmissiontempered glass|
|Price: FOB(NINGBO) 33USD/pc|
|Payment:TT (30% in advance),balance before shipment after inspection(it is negotiable)|
|Delivery: 20 days after receipt of deposit|
|Warranty: 2 years, 90% power for 10 years, 80% power for 25 years|
> High Efficiency PV Cells
> Appearance Consistency
> Anti-reflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.
Solar street lights require much less maintenance compared to conventional street lights.
Since external wires are eliminated, risk of accidents are minimized.
This is a non polluting source of electricity
Separate parts of solar system can be easily carried to the remote areas
It allows the saving of energy and also cost.
Initial investment is higher compared to conventional street lights.
Risk of theft is higher as equipment costs are comparatively higher.
Snow or dust, combined with moisture can accumulate on horizontal PV-panels and reduce or even stop
Rechargeable batteries will need to be replaced several times over the lifetime of the fixtures adding to the
total lifetime cost of the light.
