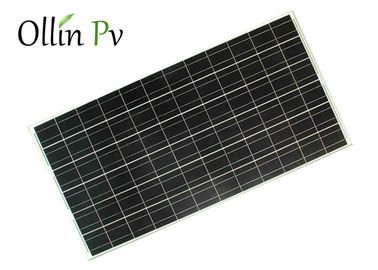

295 Watt Polycrystalline Solar Panel Off - Grid Power Generation System

295 Watt Polycrystalline Solar Panel Off - Grid Power Generation System

    • 295 Watt Polycrystalline Solar Panel Off - Grid Power Generation System
  • 295 Watt Polycrystalline Solar Panel Off - Grid Power Generation System

    Product Details:

    Place of Origin: zhejiang Pr, China
    Brand Name: OLLIN PV
    Certification: CE ROSH ISO
    Model Number: OL-72P-295

    Payment & Shipping Terms:

    Minimum Order Quantity: one unit
    Price: Negotiable
    Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
    Delivery Time: 20DAYS
    Supply Ability: 1500UNITS PER WEEK
    Contact Now
    Detailed Product Description
    Cell Material: Polycrystalline Silicon Cell Array: 6*12
    Cell Color: Blue Frame: Anodized Aluminum Alloy
    Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
    Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector
    High Light:

    multicrystalline solar panels


    polysilicon solar panel

    Off-grid power generation system Polycrystalline Solar Panel 300watt


    295Wp Poly Crystalline Solar Panel



    Product features:


    1. High quality assurance and all tested

    2. OEM/ODM Service

    3. Samples are available and big quantity at stock


    4. Reasonable price and good after-sale service

    5. Factory directly supply.




    295w Poly Solar Panel / 295 watt Polycrystalline Solar PV Module



    Model PPS295P-72
    Product Warranty 10 years limited product warranty
    Power Warranty 15 years at 90% of the minimal rated power output
    25 years at 80% of the minimal rated power output
    Electrical Data
      STC NOCT
    Maximum Power (Pmax) 295Wp 218Wp
    Maximum Power Voltage (Vmpp) 36.2V 33.5V
    Maximum Power Current (Impp) 8.15A 6.50A
    Open Circuit Voltage (Voc) 45.1V 41.9V
    Short Circuit Current (Isc) 8.76A 7.09A
    Power Tolerance(Positive) 5%
    Module Efficiency STC 15.40%
    Operating Temperature Range -40°C to +85°C
    Maximum System Voltage 1000VDC (IEC)
    Series Fuse Rating 15A
    Temperature Coefficient of Pmax -0.41 %/°C
    Temperature Coefficient of Voc -0.29 %/°C
    Temperature Coefficient of Isc 0.05 %/°C
    Nominal Operating Cell Temperature(NOCT) 45±2°C
    Mechanical Characteristics
    Cell Type Polycrystalline 156x156 mm
    Cell Number 72(6x12)
    Dimensions (mm) 990x1940x40
    Weight(Kgs) 21.6
    Front Glass 3.2 mm, High Transmission, Low Iron,Tempered Glass
    Frame Type Anodized Aluminium Alloy
    Junction Box Protection Class IP 67 Rated
    Connector Type MC4
    Output Cables 4 mm², Length:900 mm
    Standard Test Conditions (STC): Irradiance 1000W/m2, AM 1.5, Cell temperature 25°C

    Nominal Operating Cell Temperature (NOCT): Irradiance 800W/m2, AM 1.5, Wind Speed 1m/s, Ambient temperature 20°C



    295 Watt Polycrystalline Solar Panel Off - Grid Power Generation System 0

    How Do Solar Panels Work?


    When photons hit a solar cell, they knock electrons loose from their atoms. If conductors are attached to


    the positive and negative sides of a cell, it forms an electrical circuit. When electrons flow through such a


    circuit, they generate electricity. Multiple cells make up a solar panel, and multiple panels (modules) can be


    wired together to form a solar array. The more panels you can deploy, the more energy you can expect to







    1. Excellent efficiency, Easy Installation & Maintenance



    2. Outstanding performance in Low-Light



    3. High transparent, Low-Iron, Tempered Glass



    4. Ability to withstand High Wind-Pressure and Snow-Load



    5. Advanced module sealing technology to eliminate leakage and frame deformation



    6. Ability to meet customized customer's specific requirements




    Company Profile:


    We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters, Solar LED lights, and so on.


    What we can provide: High quality and very competitive price, fast delivery and best service!


    A trustable and reliable supplier for your business. We have already exported our products around the world includes Russian, Middle East, South American, Southeast Asia and so on.


    For any details, please don't hesitate to contact me any time!
