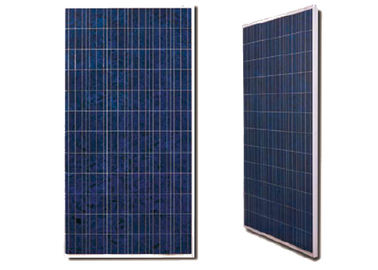

Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

Product Details:

Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-72P-300

Payment & Shipping Terms:

Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
Delivery Time: 20DAYS
Supply Ability: 1500UNITS PER WEEK
Contact Now
Detailed Product Description
Cell Material: Polycrystalline Silicon Cell Array: 6*12
Cell Color: Blue Frame: Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector

 Off-grid power generation system colorful Polycrystalline Solar Panel 300watt For roof mounted


300Wp Poly Crystalline Solar Panel


Product features:

1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT

2. Anodized quality aluminum frame, beautiful appearance

3. Wind resistance, pressure resistance, high conversion efficiency

Product field:

1. ON - Gird power generation system

2. Off - grid power generation system

3. Building-integrated power generation facilities

Specifications:


ELECTRICAL PERFORMANCE
Module type PLM-310P-72
Power output 290 295 300 305 310
Power output tolerances 0-3
Voltage at Pmax 37.14 37.58 38.08 38.32 38.47
Current at Pmax 7.81 7.85 7.88 7.96 8.06
Open-circuit voltage 44.84 44.92 45.10 45.30 45.47
Short-circuit current 8.38 8.47 8.49 8.52 8.60

OPERATING CONDITIONS
Max.system voltage 1000V
Limiting reverse current 15A
Operating temperature range -40℃ to 85℃
Max.static load front 5400Pa
Max.static load back 2400Pa
Max.hailstone impact (diameter/velocity) 25mm/23m/s

MECHANICAL CHARACTERISTICS
Front cover(material/thickness) Low-iron tempered glass / 3.2mm
Backsheet(color) white
Cell(quantity/material/dimensions) 72 / monocrystalline silicon / 156*156mm
Frame(material/color) Anodized aluminum alloy / silver
Junction box(protection degree) >= IP65
Cable&Plug connectors 900mm / 4mm² &MC4 compatitible / IP67
Module Dimensions (L /W /H ) 1956mm*992mm*40mm
Module Weight 21.6kg

Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

WHY CHOOSE US?

1. Excellent efficiency, Easy Installation & Maintenance


2. Outstanding performance in Low-Light


3. High transparent, Low-Iron, Tempered Glass


4. Ability to withstand High Wind-Pressure and Snow-Load


5. Advanced module sealing technology to eliminate leakage and frame deformation


6. Ability to meet customized customer's specific requirements
