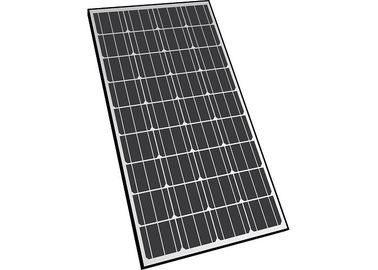

Black Color Monocrystalline Solar Module Anodized Aluninium Alloy Frame

Black Color Monocrystalline Solar Module Anodized Aluninium Alloy Frame
Black Color Monocrystalline Solar Module Anodized Aluninium Alloy Frame

Large Image :  Black Color Monocrystalline Solar Module Anodized Aluninium Alloy Frame

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36M-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2000PCS PER WEEK

Black Color Monocrystalline Solar Module Anodized Aluninium Alloy Frame

Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1100*670*30mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Weight: 8.0kg
Junction Box: Junction Box
High Light:

mono silicon solar panels

,

monocrystalline solar cells

black frame 100W Monocrystalline Solar Module fit for water pump solar boiler

Product Description


Detailed Specification:100W Mono Solar Panels



1. Peak Power(Pmpp): 100W



2. Max Power Voltage (Vmpp):17.8V



3. Max Power Current (Impp): 5.55A



4. Max system voltage (V): 1000 VDC



5. Output connector: alligator clip,cigarette lighter,mc4



6. Operating Temperature: -40°C to +85°C



7. Cells: 4*9,



8. Power allowance: ±3%



9. Dimension: 1000*670*30mm



10. Weight: 8.5kg



11.Warranty:5 years





Detailed Product Description



Mechanical Data
Cell type Mono156mm*114mm
No.of cells 36 in series(4*9)
Dimensions 1100*670*30mm
Weight 7kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 80WM   90WM   100WM
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 4.78A   5.4A   5.99A
Max. power current(Imp) 4.4A   5.1A   5.55A




Maximum System Voltage DC1000V
Temperature Coefficient of Voc -0.27%/°C
Temperature Coefficient of Isc +0.045%/°C
Temperaturecoefficient of Pmax -0.408%/°C
Maximum Series Fuse Rating 15A

Junction Box Ip67 rated/with 6 bypass diodes
Cable 4.0mm2
(0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches))
Tempered Glass 3.2mm(0.13inches)tempered glass
Cell Encapsulation EVA(Ethylene-vinyl-Acetate)
Back Sheet composite film
Frame Anodized aluminum alloy
Dimension 1957*992*50mm(77.05*39.06*1.97inches)
Maximum Surface Load Capacity 5400pa
Hail maximun diameter of 25mm with impact speed of 23m-s-1
Temperature Range -40°C to + 85°C
Weight 23.0kg(50.7bs)



 About us:


OLLIN is a professional manufacturer for kinds of Solar Panels with more than 8 years of



experience. Our main products includes: Mono and Poly Solar Panel, Solar power system,



Solar charger controller, Solar lights(Street, Garden, Yard, Farm) and so on.

What we can provide: high quality and very competitive price. A trustable and reliable



supplier for your business. Our business has been expanded to more than 30 countries and



earn a high reputation all over the world. Pls come to our website to get more information



about our business.

For any details, please don't hesitate to contact us any time!





FAQ




1.Q: Do you have your own factory?


A: Yes, we have. Our factory located in Yuyao city, Zhejiang province.Near Shanghai.

2.Q: How can I visit your factory?



A: Before you take off from your country, please let us know. We will arrange time to pick you up.

3.Q: Do you provide sample?



A: Yes, we can supply the sample

4.Q: Could you print our company LOGO on the nameplate and package?



A: Yes, we can do OEM.

5.Q: tell me the standard of package?



A: Plywooden box pallet or carton box pallet.

6.Q: Do you accept custom design on size and package?



A: Yes, if the size and package are reasonable.
