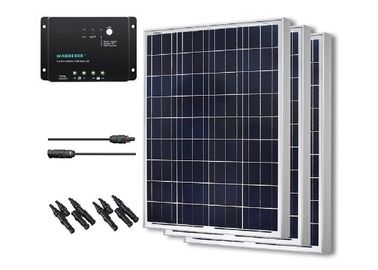

50 / 60 / 80 Watt Solar Panel Polycrystalline PV Module With Light Absorption

50 / 60 / 80 Watt Solar Panel Polycrystalline PV Module With Light Absorption

50 / 60 / 80 Watt Solar Panel Polycrystalline PV Module With Light Absorption

Product Details:

Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36M-50

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK
Contact Now
Detailed Product Description
Material: Polycrystalline Silicon Color: Blue
Dimension: 670*540*30mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%

50w 60w 80watt Polycrystalline Solar Panel white frame Solar module 12V Solar Panel charge for street light



Features





1) Module efficiency : up to 16%



2) Warranty : 10 years/90%, 25 years/80%, guaranteed 3years material and workmanship



3) Tolerance : Guatanteed tolerance, different model with diffetent tolerance



4) Excellent performance under low light conditions



5) Module certified to wind and snow loads



6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust



7) Rich selection of solar power


Specifications:



OLLIN-40M-60M
Polycrystalline Solar Module

Mechanical Data
Cell type poly
No.of cells 36 in series(4*9)
Dimensions 670*540*30mm
Weight 5kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 40W   50W   120W
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 2.52A   3.08A   3.33A
Max. power current(Imp) 2.22A   2.78A   2.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃


50 / 60 / 80 Watt Solar Panel Polycrystalline PV Module With Light Absorption







China manufacturer poly solar cell panels for solar power plant


Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :Solar



Panel---Solar Controller---Battery---Inverter---AC Appliance .Solar panel constituent part :


1. Stalinite (Protect generate conductor from damage ,such as solar cell )



2. EVA (Fix aluminium alloy and generate conductor )



3. Solar cell (Generation function )



4. Backboard(PET) ,Sealing ,insulation and waterproof )



5. Aluminium alloy (Seal and support function)



6. Juntion box ( Protect generation system and transfer current function )



7. Silica gel ( Sealing function )


FAQ



• Are you manufacturer or trading company?


--- we are a manufacturer & system integrator since Jan 2008.


• What kind of solar panel do you have?


--- Power from 3W to 315W


• What is the warranty of solar panels?


--- 5 - year warranty on material and workmanship, 90% power output in 10 years, 20% in 25 years


• Can you quote me the best price?


--- We need more information about your demands, such as the power/material/Qty/etc, then We can



suggest the suitable type and quote the best price for you.
