LCD Display 5kw Residential Solar Power Systems With 48v Batteries 20A Inverter

LCD Display 5kw Residential Solar Power Systems With 48v Batteries 20A Inverter
LCD Display 5kw Residential Solar Power Systems With 48v Batteries 20A Inverter

Large Image :  LCD Display 5kw Residential Solar Power Systems With 48v Batteries 20A Inverter

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE ROSH
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: carton
Delivery Time: 20days
Supply Ability: 300 Set/Sets per week

LCD Display 5kw Residential Solar Power Systems With 48v Batteries 20A Inverter

Description
Solar Panel: 260W Solar Panel Load Power (W): 4500W
Inverter: Off Grid Pure Sine Wave Charging Time: 8-10 Housr To Charge The Battery Fully
Battery: 12V/12AH SMF Battery Application: Buliding/ House
High Light:

residential solar electricity systems

,

complete solar power system

 Off-Grid solar electric system 5kw Residential Solar Power Systems with 48v batterys 20A inverter


Description:

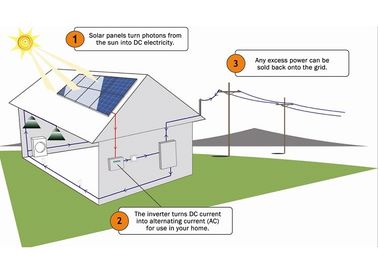

1. Sunlight falls on high capacity solar panels during daylight hours. The solar panels convert the sun’s

energy into Direct Current(DC) electricity which is sent to an inverter.

2. The inverter converts the Direct Current into Alternating Current (AC) electricity. This is sometimes

called " conditioning ” the power.

3. When the solar energy system produces more electricity than is needed during peak sun hours, excess

electricity is automatically sent to the utility company and the electric meter actually runs backwards!

4. Solar energy systems produce very high quality electricity that reduces the chance of power fluctuations

that could damage electronic equipment.

5. Utility power is continuously provided at night and during the day when demand exceeds solar production.


1.1KW Grid Tied Solar System Specification

SOLAR PANEL
Solar panel power Pm 12*260WP
Power allowance ±3%
Optimized working voltage Vm 36.6V
Optimized working current Im 7.1A
Open circuit voltage Voc 45.1V
Short circuit current Isc 7.67A

GRID TIED INVERTER
Inverter Input (DC)
Max. DC power 3100W
Max. DC voltage 500V
Max. input current 8.8A
Number of MPP trackers/Strings per MPP tracker 1 1
MPPT voltage range (at rated power) 120~425V
Shutdown voltage/Start voltage 70/120V

Inverter Output (AC) Inverter Output (AC)
AC nominal power 3000W
Max. AC power 1000W
Max. AC current 5.5A
Nominal AC voltage / range 230 / 180~270V
AC grid frequency / range 50 / 47~52Hz
Power factor (cosφ) 1
Total harmonic distortion (THDi)(at nominal power) <3%
Inverter Efficiency Inverter Efficiency
Max. efficiency 96.60%
Euro efficiency 95.50%
MPPT efficiency 99.90%
Inverter General data
Dimensions (W / H / D) 285*385*145mm
Weight [kg] 15Kg
Operating temperature range -20~+60 (derating at 45 °C)
Ingress protection IP65
Topology transformerless
Internal consumption(night) 0
Cooling concept Convection
Noise (typical) <30 dB
LCD display Backlight, 16*2 Character LCD
Communication port RS232

SOLAR PANEL MOUNTING(Pitch roof )
Rail 2600mm*8pcs
Hook 24pcs
Middle clamp 20pcs
End clamp 8pcs
Connect of rail 4pcs
Grounding lug (Optional) 10pcs
Earthing clips (Optional) 10pcs

ELERTRIC BOX (Optional) AC/DC Circuit Breakers,Lighting arrestors, Electric meter



Off grid solar system


Solar Panels: Change sunlight into direct current(DC) electricity

Support Structure: Attaches the solar panels to roof or building

Inverter: Changes DC electricity from the solar panels into AC electricity

Meter: Tracks the AC electricity coming from and being sent back to the electric utility grid


Applicance


Long lifespan: 25Years lifetime guarantee, 12years workshop warranty. 90% output in first 10years. 85%

output in next 15years.If module fail during warranty period, please contact local dealer, and provide the

warranty card to replace the products.
Solar panels are withstand extreme working condition (from -40°C to 120°C)
Grade A solar panels rated by CE.
High transformation efficiency solar panels
New UV reflector protected Layer
Maintenance free solar panels
No exposed metal parts
Custom-made available
100% EL TEST before and after laminator for each solar panels
Bankable solar panels in South America, Africa, UAE, India
