| Brand Name: | OLLIN PV |
| Model Number: | OL-36p-45 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

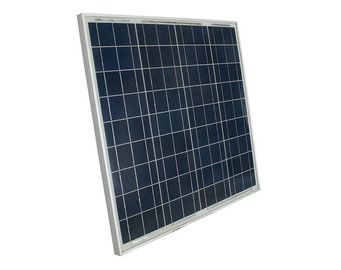

white frame 45W Polycrystalline PV Solar Panel Solar Cell charge for solar boat light, solar monitor
Solar panel constituent part :
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Anti-PID
Glass
> Anti-reflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design-glue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
| OLLIN-35P-45P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Polycrystalline | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 625x530x25mm | ||||||
| Weight | 4kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 35WP | 40WP | 45WP | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 2.48A | 2.56A | 2.74A | ||||
| Max. power current(Imp) | 2.01A | 2.29A | 2.58A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
FAQ
Q1 : What is you advantages
A1: a).We are professional ups manufacturer for more than ten years and we have these staffs with rich
production and R&D
b) Excellent workers and skilled engineers
c).Our aims are to provide every customer high quality, reasonable price and excellent service.
d)we can guarantee to send the goods on time. And also accept any transportation ways that you
require
Q2 : How do you control the production quality
A2:
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery
Q3 : Do you accept OEM/ODM?
A3 : ODM&OEM are warmly welcomed !!!
|
|
