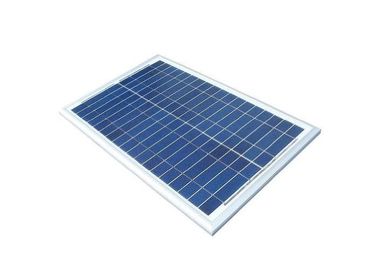

Aluminium Frame Solar Panel Solar Cell / Poly Solar Panel For Solar Tracking Device

Aluminium Frame Solar Panel Solar Cell / Poly Solar Panel For Solar Tracking Device

Aluminium Frame Solar Panel Solar Cell / Poly Solar Panel For Solar Tracking Device

Product Details:

Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36P-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 40PC per carton,
Delivery Time: 20DAYS
Supply Ability: 23000PCS PER WEEK
Contact Now
Detailed Product Description
Material: Polycrystalline Silicon Color: Dark Blue
Dimension: 340*240*17mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Connecter: DC Or Alligator Clip

 Aluninium frame 10W poly Solar Panel Solar Cell charging for solar tracking device Solar camping light


Features:


1. Solar panel nominal 12/24v DC for standard output.

2. Solar panel encapsulated with high transmission low-iron, 3.2mm tempered glass.

3. Aesthetic appearance and rugged design.

4. Cells are laminated with TPT and EVA ensuring longer life and maximum performance.

5. PV module easy to install.

6. TPT imported from Krempel, Germany.

7. High Solar cell-conversion efficiency of solar cell: up to 21% and stability with guaranteed 3%power

output tolerance.

Applications:
1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, vanue, stadium and so on

4. Power station, field operation some huge engineer construction.

Electrical Characteristics

ITEM NO 10W/18V
MONO or POLY poly
Maximum power (Wp) 5wp
Maximum power voltage (V) 18
Maximum power current (A) 0.57
Open circuit voltage (V)  21.6
Short circuit current (A) 0.61
Number of cells (Pcs) 36
Size of module (mm)  340*240*17
Brand Name of Solar Cells HT
Maximum system voltage (V) 715
Temperature coefficients of Isc (%) 0.065+/-0.015%/°C
Temperature coefficients of Voc (%) -(2.23+/-0.1)mv/ °C
Temperature coefficients of Pm (%) -(0.5+-0.05)/ °C
Temperature coefficients of Im (%) +0.1/ °C
Temperature coefficients of Vm (%) -0.38/ °C
Temperature Range -40°C~+85°C
Tolerance Wattage (e.g. +/-5%) +/-5%
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m height
Weight per piece (kg)  1.2
Length of Cables (mm)  3m
Cell Efficiency (%) more than13%
Module Efficiency (%) more than 8%
Output tolerance (%) +/-5%
Frame (Material, Corners, etc.) Aluminum
Standard Test Conditions AM1.5 100mw/cm2 25°C
Warranty 2 years product warranty and 25years 80% of power
FF (%) 75%
Packing 10PCS/ CTN
Unit Price

Aluminium Frame Solar Panel Solar Cell / Poly Solar Panel For Solar Tracking Device

Polycrystalline Solar Module


Using only the best quality materials to provide high quality solar modules

1.High efficiency solar cells with high transmission and low iron textured glass delivering high

efficiency modules

2.Bypass diode minimizes the power drop caused by shading

3.Tempered glass,EVA resin,and weatherproof film,plus aluminum frame for extended outdoor

use
4.Modules independently tested to ensure conformance with certification and regulatory

standards

5.Manufacturering facility certified to ISO 9001 quality management system sandards


FAQ:


1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in No.12,Yuci North Road, Wuxing Village, Fengshan Street,Yuyao City,Zhejiang Pr

China. You are warmly welcomed to visit us

And before you take off from your country, please let us know. We will show you the way, or arrange time to

pick you up if possible.

3. Q: Do you provide free sample?

A: Usually we do not offer free sample.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.

5. Q: Could you print our company LOGO on the nameplate and package?

A: Yes, we can do that.

6. Q: Do you accept custom design on size?

A: Yes, if the size is reasonable.
