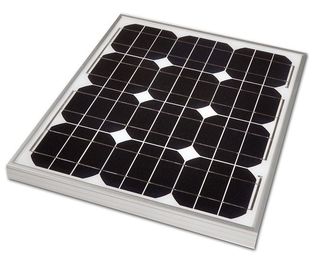

Anti - Pid Monocrystalline Silicon Solar Panels , 30w Waterproof Mono Pv Module

Anti - Pid Monocrystalline Silicon Solar Panels , 30w Waterproof Mono Pv Module

    • Anti - Pid Monocrystalline Silicon Solar Panels , 30w Waterproof Mono Pv Module
    • Anti - Pid Monocrystalline Silicon Solar Panels , 30w Waterproof Mono Pv Module
  • Anti - Pid Monocrystalline Silicon Solar Panels , 30w Waterproof Mono Pv Module

    Product Details:

    Place of Origin: zhejiang PR, CHINA
    Brand Name: OLLIN PV
    Certification: CE
    Model Number: OEM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: carton, pallet
    Delivery Time: 20days
    Supply Ability: 8000 Piece/Pieces per Week
    Contact Now
    Detailed Product Description
    Module Name: 30watt Monocrystalline PV Module Application: STREET LIGHTS
    Output Voltage(V): 18V Working Life: 25 -30 Years
    Solar Cell: Mono Crystalline Solar Cell Cell Number: 36Pcs
    Warranty(Year): 2

    Features:

    1, High efficiency (18%-20%) poly silicon cells ( high qulity) for long term output stability.

    2, Strictly quality control ensure the stablity and reliability of each piece of the solar panels from Kelan.

    3, High transmittance low iron ermpered glass with enhanced stiffness and impact resistance.

    4, Both poly and mono crystalline for options.

    5, Outstanding electrical performance under high temperature and low irradiance.

    6, Excellent performance in harsh weather.



    Description of every parts:
    1. Junction Box in proof-water with TUV Certificate

    2. Bypass Diode Rated 45V&15A

    3. Solar Cable & Connector: 4m² MC 4connector with TUV Certificate

    4. Toughed Glass: The glass is super white cloth grain of toughened glass , the thickness of 3.2mm , the solar cell spectral response range of wavelengths (320-1100 nm), light transmittance over 91% , Ultraviolet light radiation , light transmittance is not falling.Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.

    5. EVA: 0.5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
    Light transmittance is greater than 91% ; Crosslinking degree is during from 70 to 90% ; Peel strength (N/cm), glass/film is more than 30 ; TPT/film is more than 15 ; Temperature resistance is from - 40° C to 85° C.

    6. TPT BackSheet: the back of the solar panel, ageing resistance , corrosion resistance , resistance to ultraviolet radiation, airtight, etc. Basic requirements.

    7. Frame: aluminum alloy frame with high intensit , mechanical shock resistance ability.Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.



    Specifications:

    Solar Panel Parameters OL-30W-M
    Optimized working voltage 21.6V
    Optimized working current 1.69A
    Open circuit voltage 18V
    Short circuit current 1.78A
    Nominal power 30W
    Operating temperature -40℃ to+85℃
    Maximum system voltage 1000VDC(IEC)/600VDC(UL)
    Series fuse rated value 20A
    Power tolerance ±3%
    Cell specification
    Arrangement quantity 36(3×12)
    Solar panel dimension 650*350*23mm
    Weight 2.5.0.0kg
    Glass specification 3.2mm(0.13inch) tempered glass
    Frame Anodised aluminium alloy
    Rated operating temperature 45±2℃
    Pmax temperature parameter -(0.48±0.05)%/℃
    Voc temperature coefficient: -(0.34±0.1)%/℃
    Isc temperature coefficient 0.04±0.01%/℃
    Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃.



    Module Warranty:
    25-year limited warranty of 80% power output;
    10-year limited warranty of 90% power output;
    5-year limited warranty of materials and workmanship.



    Features of the solar street light:




    1. Very easy to install, IP65 Waterproof and stunning quality for outdoor and indoor flood light.



    2. Provide bright and wide beam distribution light for general purpose flood night lighting.



    3. Energy-saving and Eco-friendly, no any pollution to environment.



    4. High efficiency, low light decay.
