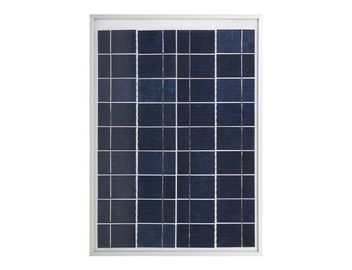

Foldable Charger 10w Polysilicon Solar Panel Powering For Garden Light

Foldable Charger 10w Polysilicon Solar Panel Powering For Garden Light

Foldable Charger 10w Polysilicon Solar Panel Powering For Garden Light

Product Details:

Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36P-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK
Contact Now
Detailed Product Description
Material: Polycrystalline Silicon Color: Black
Dimension: 210*195*18mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%

10w Polycrystalline Solar Panel powering for garden light foldable charger solar traffic light and blinker with 5m



Features:



ENHANCED EXTERNAL LOAD / IMPACT



Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)



Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)



Hail Impact : 30.7m/s (speed ball)



POWER ADVANTAGE



25-year, linear power warranty



> 97.5% nominal power during 1st year

Positive tolerance up to +5W



PID RESISTANCE

Enhanced potential induced degradation



FIRE SAFETY

UL1703 Fire Classification : Type 1, Type 2



ENVIRONMENT RESISTANCE

Suitable for extreme conditions

Resistant to high salt mist and ammonia



AVAILABLE IN TWO THICKNESSES



Standard (30T) and 40T for more durability


Specifications:




specifcation
Related power 10W
Voc 20.6V
Vop 17.3V
Short circuit current (Isc) 0.69A
Working current (Iop) 0.58A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃to +80℃
Frame Heavy duty aluminum
Kind of connection waterproof junction box, can be customized
Guarantee of power 90% within 10 years 80 within 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 337 ×204 x 18(13.3*8.06*0.72)
Net Weight

0.85kgs (1.88lbs)



Foldable Charger 10w Polysilicon Solar Panel Powering For Garden Light

Solar Cell



> High Efficiency PV Cells



> Appearance Consistency



> Anti-PID



Glass



> Anti-reflective glass



> Translucency of normal luminance is increased by 2%



> Module efficiency is increased by 2%



> Self-cleaning function



> Service life is as long as 25 years(30 years optional)



Frame



> Conventional frame



> Silver or black frames are optional



> Boost bearing capability and prolong service life



> Serrated-clip design tensile strength



> Seal-lip design-glue injection



Junction box



> Conventional standalone edition and engineering custom edition



> Quality diode ensures module running safety



> IP67 protection level



> Heat dissipation



> Long service life



How Do Solar Panels Work?





When photons hit a solar cell, they knock electrons loose from their atoms. If conductors are attached to



the positive and negative sides of a cell, it forms an electrical circuit. When electrons flow through such a



circuit, they generate electricity. Multiple cells make up a solar panel, and multiple panels (modules) can be



wired together to form a solar array. The more panels you can deploy, the more energy you can expect to



generate.













Why choose us?

Advantages we have:



A: Experienced and sophisticated light products supplier.



B: Professional design team and sales department for your any requirements.



C: Alibaba golden supplier, factory recognized by CE, ISO9001, RoHS.



D: 7/24 service for you. All the question will be dealt within 24 hours.



Benefits you get:



A: Stable quality----Using the best material and technology.



B: Lower price----Not the cheapest but the lowest in the same quality products.



C: Good service----Satisfying service before and after service.



D: Delivery time----20-30days for mass production.
