Product Details:
|
| Color: | Blue Color Cells | Material: | Polycrystalline Silicon |
|---|---|---|---|
| Dimension: | OEM | Frame: | No Frame |
| Epoxy: | Solar Panels | Shape: | Round |
| High Light: | circular solar panels,small solar cells |
||

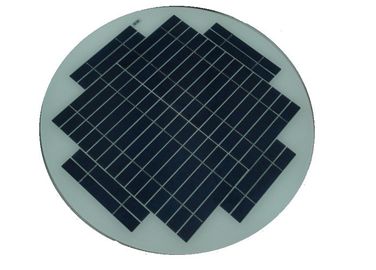

Off-grid power generation system solar street light system mini traffic light 15watt Round Solar Panel charger
Product Description
1. Each solar cell is in new condition and not susceptible to micro-crack
2. A proprietary anti-reflective coating provides superior color uniformity
3. Laser-cut for exacting measurements and precision
4. Can be incorporated into several different devices
5. Simple to install or add to your existing product.
6. Small space required for installation.
7. Ready to use, they require no frame or special modifications.
8. For connection, just solder or crimp to the copper tape.
9. Light weighted, very strong and weather resistant.
10. Ideal for OEM and hobby applications.
Electrical Characteristics
Item No. 15W
Maximum Power (Pm) :15W
Operating Voltage (Vmp):18V
Operating Current (Imp) : 833mA
Power Tolerance:-5% to +5%
Dimension: Diameter:475mm, thinkness:5.5mm
Panel color: White
Glass thickness:3.2mm,Low iron tempered glass
Type: Polycrystalline silicon solar cell
Encapsulation Methods: PV tempered glass lamination
No frame, with junction box, without solder wire
Charger for 12V batteries
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
MATERIALS
Epoxy is a type of liquid resin known for its good adhesive properties and resistance to water degration.
That is why they are used for laminating solar cells and is also used in boat building too. They are usually
identified by their amber or slight brown colour. They also have high electrical insulation and good chemical
resistance. However, in the long run, they can age prematurely under the Sun, turning yellowish and
become more brittle.
How to choose the correct voltage for your products:
Basic principle:
(1)The solar panel voltage is best to be 1.5times higher than the storage battery, in order to fully
charge the battery, such as: 3.7V Lithium Battery ===== 3.7*1.5=5.55V. =====> The optium voltage
for solar panel charging this lithium battery is 5.5V, you can choose 6V. Voltage lower than 5V is not
a good idea for fast charging;
12V Lead acid battery ==== 12V*1.5=18V ====> The optium voltage for solar panel is 18V, 17.5V is
also OK. But voltage lower than 17V will not be a good idea for fast charging.
(2) The voltage of solar panel is not the higher, the better, because during our R&D, we must
consider the charging current, and the battery protection. If the charging voltage is too high, the
battery might be damaged. And when the voltage is too high, the charging current would be weak,
and the charging speed would become too slow.
3.7V Lithium Battery ===== The solar panel voltage better not be higher than 6V.
12V Lead acid battery ===== The solar panel voltage better not be higher than 18V, because of the
above two reasons.
Do you understand above now, please? If there is any other question, you can feel free to ask me
anytime.
