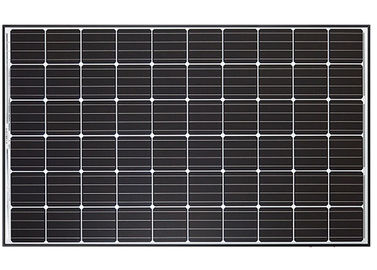

Parking Lots Solar Power Solar Panels 3.2mm High Transmission Tempered Front Glass

Parking Lots Solar Power Solar Panels 3.2mm High Transmission Tempered Front Glass

  • Parking Lots Solar Power Solar Panels 3.2mm High Transmission Tempered Front Glass
Parking Lots Solar Power Solar Panels 3.2mm High Transmission Tempered Front Glass
Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-72P-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 1PC per carton or 27pcs per pallet
Delivery Time: 20DAYS
Supply Ability: 1500PCS PER WEEK
Contact Now
Detailed Product Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1956 X 990x 50mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Connecter: 0.9m Wire And MC4 Connecter
High Light:

mono silicon solar panels

,

monocrystalline solar cells

black color Aluninium frame 315watt Monocrystalline Solar Module charging for Solar Lighting for Parking lots



Mechanical Data

Technology:                                 Monocrystalline (Mono)



Dimensions:                                62.60 x 41.50 x 1.40 inches



Weight:                                        40.81 lbs



Internal Bypass Diodes:             4 Bypass Diodes



Module Area:                               18.02 ft²



Cable Length +Male/-Female:     40.2/40.2 in



Cable Size/Type:                          No. 12 AWG/PV Cable



Connector Type:                          Multi-Contact Type IV (MC4)



Static Wind/Snow Load:              50 PSF (2400 Pa)



Operating Temperature:               -40°C to +85°C



Hail Safety Impact Velocity:         1" Hailsone at 52 MPH



Safety & Rating Certifications:    UL 1703, cUL, CEC



UL 1703 Fire Classification:        Type 2



Electrical Data




Nominal Maximum Power (Pmax): 315 Watts
Maximum Power Voltage (Vpm): 58.40 Volts
Maximum Power Current (Ipm) 5.40 Amps
Operating Circuit Voltage (Voc): 70.20 Volts
Short Circuit Current (Isc): 5.83 Amps
Temperature Coefficient (Pmax): -0.258%/°C
Temperature Coefficient (Voc): -0.16V/°C
Temperature Coefficient (Isc): 3.21mA/°C
NOCT: 44.0°C
Cell Efficiency: 21.20%
Module Efficiency: 18.80%
Watts per Feet²: 17.50 Watts
Maximum System Voltage: 600 Volts
Series Fuse Rating: 15 Amps
Warranted Tolerance (-/+): +10%/-0%



SOLAR ELECTRIC POWER GENERATION







On-grid systems are common in the world and world is moving toward on-grid technology. On-Grid system is



that system which is connected with Utility Grid with built in two meters one is export meter and one is



import meter and in some case one bi-directional meter which reverses when electricity is sold to Grid and



at the end the user pays for the net meter reading.



In two meters system, when energy is sold to Grid, the export meter counts and when energy is bought from



grid, import meter counts the power consumption and user has to pay the net reading of both meters.



User/Power producer will be paid by the Utility if Utility has bought more and sold less. To make legal such



systems, there is FIT (Feed-In-Tariff) policy by which the solar power generation is governed. Through FIT



policy, the Government fixes up the rate of buying from solar power producers as per slabs. In Pakistan,



there is no net-metering policy and there is no FIT policy. On-Grid power is cheaper and does not have



batteries. One of the barriers in FIT in Pakistan is the continuous load shedding because such systems



stop working as such systems have no back up when grid is off.





Why Go Solar With Us?



OLLIN PV is a leading online solar energy supply store serving homeowners and businesses. We design



and supply quality Solar Power Kits, both preconfigured and custom tailored for your needs. Our wholesale



pricing reflects the relationships we carry with the manufacturers we stock, ensuring the best deals for our



customers.



We carry everything you need for your grid-tied or off-grid system, including plans, permits and diagrams.



Our Solar Panels, Inverters, Racking and Mounting are second to none in quality, reliability, efficiency and



lifespan. When going solar with us, we help you every step of the way in sourcing the products that matter



for your investment.



Shop confidently with us and receive expert technical help from start to finish, and watch your investment



produce free renewable energy for years to come!
