Product Details:
|
| Material: | Monocrystalline Silicon | Color: | Black |
|---|---|---|---|
| Dimension: | 1956 X 990x 50mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
| Frame: | Anodized Aluninium Alloy | Connecter: | 0.9m Wire And MC4 Connecter |
| High Light: | mono silicon solar panels,monocrystalline solar cells |
||

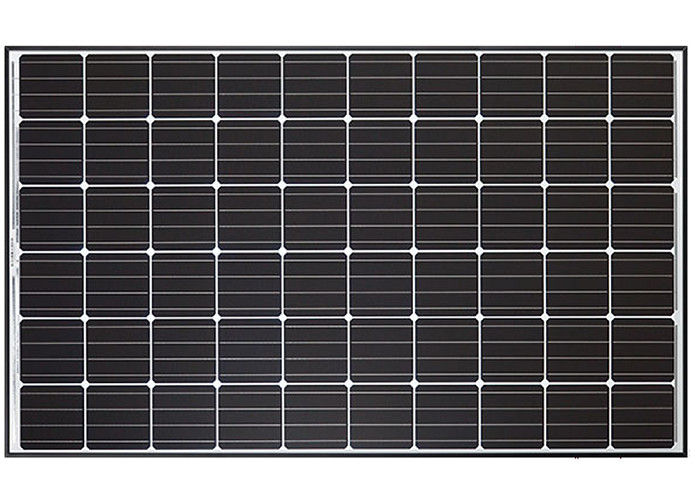

black color Aluninium frame 315watt Monocrystalline Solar Module charging for Solar Lighting for Parking lots
Mechanical Data
Technology: Monocrystalline (Mono)
Dimensions: 62.60 x 41.50 x 1.40 inches
Weight: 40.81 lbs
Internal Bypass Diodes: 4 Bypass Diodes
Module Area: 18.02 ft²
Cable Length +Male/-Female: 40.2/40.2 in
Cable Size/Type: No. 12 AWG/PV Cable
Connector Type: Multi-Contact Type IV (MC4)
Static Wind/Snow Load: 50 PSF (2400 Pa)
Operating Temperature: -40°C to +85°C
Hail Safety Impact Velocity: 1" Hailsone at 52 MPH
Safety & Rating Certifications: UL 1703, cUL, CEC
UL 1703 Fire Classification: Type 2
Electrical Data
| Nominal Maximum Power (Pmax): | 315 Watts |
| Maximum Power Voltage (Vpm): | 58.40 Volts |
| Maximum Power Current (Ipm) | 5.40 Amps |
| Operating Circuit Voltage (Voc): | 70.20 Volts |
| Short Circuit Current (Isc): | 5.83 Amps |
| Temperature Coefficient (Pmax): | -0.258%/°C |
| Temperature Coefficient (Voc): | -0.16V/°C |
| Temperature Coefficient (Isc): | 3.21mA/°C |
| NOCT: | 44.0°C |
| Cell Efficiency: | 21.20% |
| Module Efficiency: | 18.80% |
| Watts per Feet²: | 17.50 Watts |
| Maximum System Voltage: | 600 Volts |
| Series Fuse Rating: | 15 Amps |
| Warranted Tolerance (-/+): | +10%/-0% |
SOLAR ELECTRIC POWER GENERATION
On-grid systems are common in the world and world is moving toward on-grid technology. On-Grid system is
that system which is connected with Utility Grid with built in two meters one is export meter and one is
import meter and in some case one bi-directional meter which reverses when electricity is sold to Grid and
at the end the user pays for the net meter reading.
In two meters system, when energy is sold to Grid, the export meter counts and when energy is bought from
grid, import meter counts the power consumption and user has to pay the net reading of both meters.
User/Power producer will be paid by the Utility if Utility has bought more and sold less. To make legal such
systems, there is FIT (Feed-In-Tariff) policy by which the solar power generation is governed. Through FIT
policy, the Government fixes up the rate of buying from solar power producers as per slabs. In Pakistan,
there is no net-metering policy and there is no FIT policy. On-Grid power is cheaper and does not have
batteries. One of the barriers in FIT in Pakistan is the continuous load shedding because such systems
stop working as such systems have no back up when grid is off.
Why Go Solar With Us?
OLLIN PV is a leading online solar energy supply store serving homeowners and businesses. We design
and supply quality Solar Power Kits, both preconfigured and custom tailored for your needs. Our wholesale
pricing reflects the relationships we carry with the manufacturers we stock, ensuring the best deals for our
customers.
We carry everything you need for your grid-tied or off-grid system, including plans, permits and diagrams.
Our Solar Panels, Inverters, Racking and Mounting are second to none in quality, reliability, efficiency and
lifespan. When going solar with us, we help you every step of the way in sourcing the products that matter
for your investment.
Shop confidently with us and receive expert technical help from start to finish, and watch your investment
produce free renewable energy for years to come!
