Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE ROSH
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: carton
Delivery Time: 20days
Supply Ability: 800 Set/Sets per week

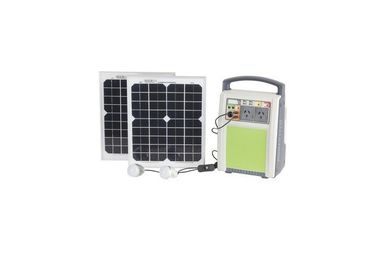

Green Energy Portable Solar Battery System Simple Structure Easy Operate

Description
Solar Panel: 160W Solar Panel Work Time (h): About 12 Hours
Application: Electric Fan Hiking Camping Battery: 12v12Ah Lead Acid Battery
Charging Time: 8-10 Housr To Charge The Battery Fully Specification: Normal
High Light:

waterproof power bank

,

solar powered battery charger

Protable Solar panel charger Solar Power Systems charged for electric fans computers phones lights



Product features:




1. Green energy



2. The whole system's structure is simple . Easy to operate



3. With long-life solar panel--more than 20 years



4. Automatic lighting controller :with adjustable run times, over-current protection



5. Solar Batteries: Maintenance free, long life batteries



6. Its main use is general household use system .



7. Flexible designs per client requests.


Module Type OLPV130W OLPV140W OLPV150W OLPV160W OLPV165W
Maximum power 130 W 140 W 150 W 160 W 165 W
Max power voltage 17.50 V 17.70 V 17.90 V 18.10 V 18.20 V
Max power current 7.43 A 7.92 A 8.38 A 8.84 A 9.06 A
Open circuit voltage 21.50 V 21.70 V 21.90 V 22.10 V 22.30 V
Short circuit current 7.96 A 8.49 A 9.01 A 9.53 A 9.74 A
Module Efficiency 13.13% 14.14% 15.15% 16.16% 16.67%
Power Tolerance -0~+5W -0~+5W -0~+5W -0~+5W -0~+5W
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.




*Terms Conditions:



Trade terms: FOB
Lead time: 1-3 days for sample order*2-5 days for bulk order
Minimum order:

You can order single items as samples, No MOQ

We can offer discount if more than 100pcs/item one order

Payment terms: T/T in advance
Tax To lower tax we can mark a lower unit price
Packing Routine standard package. All molding and tooling charges for customers’ special packaging will be on customer's account
