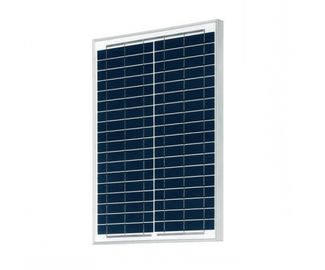

Street Light System Solar Powered Generator Special Aluminum Frame Design

Street Light System Solar Powered Generator Special Aluminum Frame Design

    • Street Light System Solar Powered Generator Special Aluminum Frame Design
  • Street Light System Solar Powered Generator Special Aluminum Frame Design

    Product Details:

    Place of Origin: zhejiang Pr. China
    Brand Name: OLLIN PV
    Certification: CE
    Model Number: OL-36M-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece/unit
    Price: Negotiable
    Packaging Details: as customer's requirment
    Delivery Time: 20DAYS
    Supply Ability: 2300PCS PER WEEK
    Contact Now
    Detailed Product Description
    Material: Polycrystalline Silicon Color: Blue
    Front Glass: 3.2mm High Transmissiontempered Glass Frame: Anodized Aluninium Alloy
    Maximum System Voltage: DC1000V Power Tolerance: ±5%
    High Light:

    caravan solar panels

    ,

    sunpower solar panels

    street light system 10watt 20watt black frame with 0.9m wire and Alligator clip 12V Solar Panel



    FEATURES


    ` Long Service Life


    ` High Efficiency Solar Cells


    ` Special Aluminum Frame Design


    ` High Transmission, Low Iron Tempered Glass


    ` Advanced Cell Encapsulation

    APPLICATIONS



    ` Solar power stations


    ` Rural electrification, Small home power systems


    ` Power supply for traffic, security, gas industry


    ` 12V and 24V battery charging system


    ` Other industrial and commercial applications



    Specifications:



    OLLIN-10P-20P
    Polycrystalline Solar Module

    Mechanical Data
    Cell type Polycrystalline
    No.of cells 36 in series(4*9)
    Dimensions 480*340*25mm
    Weight 2.2kg

    Electrical Data
    Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
    Power 10WP   15WP   20WP
    Open circuit voltage(Voc) 21.5V   21.5v   21.6V
    Max. power voltage(Vmp) 17.46V   17.48V   17.5V
    Short circuit current(Isc) 0.6A   0.9A   1.2A
    Max. power current(Imp) 0.56A   0.83A   1.1A
    A grade power Tolerance ± 3%
    Max.system voltage 1000V
    Operating temp. —40℃~80℃
    Temperature coefficients of Pmax -0.47% /℃
    Temperature coefficients of Voc -0.38% /℃
    Temperature coefficients of Isc +0.1% /℃



    Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
    Nominal Operating Cell Temperatur 45 ± 2℃
    Temperature coefficients of Isc +0.049% /℃
    Temperature coefficients of Voc -0.340% /℃
    Temperature coefficients of Pmax -0.430% /℃
    Solar Cell Poly solar cells 156x156 mm
    Front Cover 3.2 mm thick, tempered glass
    Back Cover TPT (Tedlar-PET-Tedlar)
    Encapsulant EVA (ethylene vinyl acetate)
    Frame Double-layer anodized aluminium alloy
    Junction Box IP65 rated
    Maximum System Voltage DC1000V (IEC)
    Maximum Series Fuse 15 A
    Operating Temperature -40℃~+85℃
    Storage Temperature -40℃~+85℃
    Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
    Application Class Class A
    Packing configuration Carton.Customers packing requirement is acceptable.


    Street Light System Solar Powered Generator Special Aluminum Frame Design 0



    FAQ



    Q1. 1.Are you factory or trade company?



    A1: We are solar panel factory with over 8 years history.



    Q2. Can we customize the size of the solar panel?



    A2: Yes, we accept customized order with MOQ 100 pcs



    Q3. What kind of certification do you have ?



    A3: Our solar panels are approved by CE, ROHS,



    Q4. What is the warranty for the solar panel?



    A4: 3 years warranty



    Q5. What is the terms of payment?



    A5: T/T, L/C, western union, trade assurance or cash; 30% for deposit, the balance 70% before shipment.



    Q6. What is the delivery time?



    A6: 15-25days after receiving payment.
