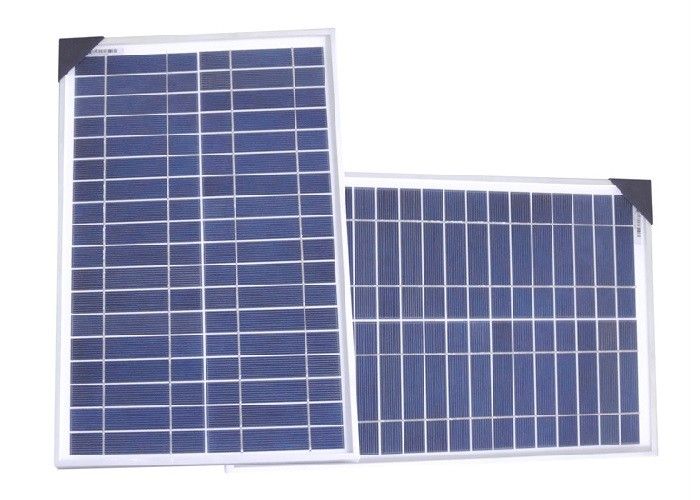

High Efficiency 20 Watt 12 Volt Solar Panel With 5 Meter Alligator Clip Wire

High Efficiency 20 Watt 12 Volt Solar Panel With 5 Meter Alligator Clip Wire

High Efficiency 20 Watt 12 Volt Solar Panel With 5 Meter Alligator Clip Wire

Product Details:

Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36P-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK
Contact Now
Detailed Product Description
Material: Polycrystalline Silicon Color: Black
Dimension: 480*340*18 Mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%

Poly 20W 12V Solar Panel powering Monitoring camera battery Solar panel kits with 5 meter alligator clip wire



1) Nominal 12v/24v DC for standard output;

2) Outstanding low-light performance;

3) Rugged design to withstands high wind preasure and snow load, easy installaion;

4) Aesthetic appearance;

5) Design to meet unique design of customer;

6) 25 year module output warranty;

7) High Efficiency;





Reted power 20W
Voc 22.41V
Vop 17.9V
Short circuit current (Isc) 1.2A
Working current (Iop) 1.1A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃to +80℃
Frame Heavy duty aluminum
Kind of connection waterproof junction box, can be customized
Guarantee of power 90% within 10 years 80% within 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 480*340*18

  High Efficiency 20 Watt 12 Volt Solar Panel With 5 Meter Alligator Clip Wire



The 25W solar panel is widely applied to DC LED lights, battery, camping, picnic and other uses. The solar panel


is with good resistance to climate, preventing wind, hail. It can effectively resist corrosion of moisture and salt fog,


and can produce high efficient power and energy.


Solar panels get energy from the sun for people to use.


There are two types of solar panels, those that collect heat (thermal), and those that produce electricity


(photovoltaic). Heat from solar panels is often used for space heating and for hot water.

Solar panels collect renewable energy. In the 20th century some used the heat of the sun to make steam for


a steam engine to turn a generator. Nowadays producing electricity from the sun's light is cheaper. This is a


solid state way of producing electricity, meaning that it has no moving parts. Solar panels are often mounted


on rooftops. Commercial or industrial installations are often on trackers mounted on the ground. The


trackers point the panel towards the sun as the sun moves across the sky. Solar panels are also commonly


used in outer space, where they are one of the few power sources available.
