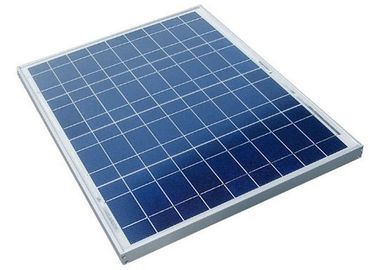

White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light

White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light

    • White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light
  • White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light

    Product Details:

    Place of Origin: zhejiang Pr. China
    Brand Name: OLLIN PV
    Certification: CE
    Model Number: OL-36P-50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece/unit
    Price: Negotiable
    Packaging Details: 2PC per carton,
    Delivery Time: 20DAYS
    Supply Ability: 2300PCS PER WEEK
    Contact Now
    Detailed Product Description
    Material: Polycrystalline Silicon Color: BLUE
    Dimension: 670*540*30mm Front Glass: 3.2mm High Transmissiontempered Glass
    Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
    Power Tolerance: ±5%
    High Light:

    sunpower solar panels

    ,

    commercial solar panels

     50w 60w 80watt white frame poly Solar module 12V Solar Panel charge for street light


    Features

    1) Module efficiency : 17%

    2) Warranty : 25Years lifetime guarantee, 12years workshop warranty. 90% output in first 10years. 85%

    output in next 15years.

    3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs

    reliably

    4) Excellent performance under low light conditions

    5) Module certified to wind and snow loads

    6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust

    7) Rich selection of solar power

    Specifications:



    OLLIN-40M-60M
    Polycrystalline Solar Module

    Mechanical Data
    Cell type poly
    No.of cells 36 in series(4*9)
    Dimensions 670*540*30mm
    Weight 5kg

    Electrical Data
    Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
    Power 40W   50W   120W
    Open circuit voltage(Voc) 21.5V   21.5v   21.6V
    Max. power voltage(Vmp) 17.46V   17.48V   17.5V
    Short circuit current(Isc) 2.52A   3.08A   3.33A
    Max. power current(Imp) 2.22A   2.78A   2.67A
    A grade power Tolerance ± 3%
    Max.system voltage 1000V
    Operating temp. —40℃~80℃
    Temperature coefficients of Pmax -0.47% /℃
    Temperature coefficients of Voc -0.38% /℃
    Temperature coefficients of Isc +0.1% /℃


    White Frame Polycrystalline Solar Module Dimension 670*540*30mm For Street Light 0


    Applications:

    Solar Photovoltaic is the technology by which solar energy is converted into electrical energy and its major

    applications in industrial and commercial sectors:

    Solar Homes Systems upto 2000 W,

    Solar Lighting,

    Solar Power Plants from 10 KW to 20 MW, Solar Parks upto 20 MW,

    Solar UPS,

    Solar Roof Based On Grid

    Power Generation,

    Solar Traffic Signals Lights,

    Power for Remote Terminal Units,

    Power for Telecommunication Towers and BSC and MSC,

    Building Integrated Photovoltaic System,

    Military signaling applications,

    Solar water Pumping,

    Solar Lighting for Parking lots,

    Solar Lighting for Bus Stop Shelters etc.


    When you would like a high quality solar panel Renytek have the Monocrystalline modules manufactured

    with a strong anodised Aluminium corrosion resistant frame and 5 Metres of Solar Cable.

    The long-lasting, high-efficiency solar cells are encapsulated in a strong aluminium frame to give many

    years of consistent reliable free energy.

    The solar panel is a waterproof design enabling use in all weather conditions.
