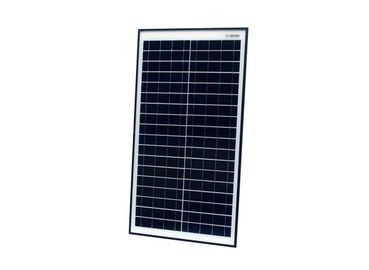

Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector

Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector
Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector

Large Image :  Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36P-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: as customer's requirment
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK

Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector

Description
Material: Polycrystalline Silicon Color: Blue
Front Glass: 3.2mm High Transmissiontempered Glass Frame: Anodized Aluninium Alloy
Maximum System Voltage: DC1000V Power Tolerance: ±5%
High Light:

caravan solar panels

,

sunpower solar panels

20watt 30watt 12V Solar Panel with 12v battery and 0.9m wire DC connecter Solar Traffic Signals Lights



Features


China manufacturer poly solar cell panels for solar power plant



Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :



Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .



Solar panel constituent part :



1. Stalinite (Protect generate conductor from damage ,such as solar cell )



2. EVA (Fix aluminium alloy and generate conductor )



3. Solar cell (Generation function )



4. Backboard(PET) ,Sealing ,insulation and waterproof )



5. Aluminium alloy (Seal and support function)



6. Juntion box ( Protect generation system and transfer current function )



7. Silica gel ( Sealing function )



Specifications:

 Traffic Signals Lights 12V Solar Panel With 0.9mm Wire DC Connector 0


OLLIN-10P-20P
Polycrystalline Solar Module

Mechanical Data
Cell type Polycrystalline
No.of cells 36 in series(4*9)
Dimensions 480*340*25mm
Weight 2.2kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 10WP   15WP   20WP
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 0.6A   0.9A   1.2A
Max. power current(Imp) 0.56A   0.83A   1.1A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃



Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.



SOLAR ELECTRIC POWER GENERATION



Un-professional and Un-trained people in the market are selling under-designed and low quality systems



because of which the customers are losing confidence in solar technology. On the one hand, solar



technology has high upfront costs and on the other hand people are selling low quality and under-designed



systems to cut down the costs. The most important thing in solar Power systems is its right design and



putting high quality system components which should guarantee faultless operation of the whole systems for



20 years. The other important thing for customers is that they should not buy system in watts but systems in



watt-hours. For example 500W system can work for one hour and can work for 24 hours. If it generates



power for one hour, the system capacity will be 500 Watt-Hours and if the system works for 24 hours,



12000 Watt-Hours (12 KWHR per day means 12 units per day). Now both systems are of 500 W but their



operational hours vary. The cost of the system is calculated as per watt-hours, not as per watt. So



customers should not buy watts but watt-hours as they are buying not watts but watt-hours which is real



energy as they pay their electric bills in watt-hours or Kilo Watt Hours which is called the Units in common



language.





Applications:

1) Providing realiable and economical solar electric systems for remote power solutions;

2) Designed for use on residential and small commercial buildings;

3) Ideal for solar – electric water pumping systems;

4) Logical solution for the remote energy needs of the oil & gas industry;

5) Solar lighting system;

How much power i will get?

If the 10 watt solar panel received 5 hours per day of full sun, then you would have:



0.64 amps (10W panel) X 5 hrs sun = 3.2 amp - per/day



3.2 X 12V = 38.40 watt - per/day.
