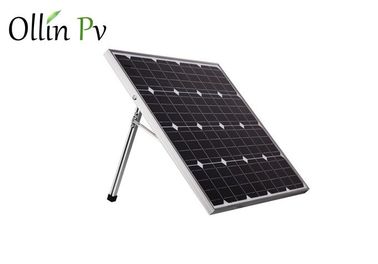

Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance

Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance
Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance

Large Image :  Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-72P-60
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: heavy duty padded carry bag and carton
Delivery Time: 20DAYS
Supply Ability: 1200UNITS PER WEEK

Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance

Description
Cell Material: Monocrystalline Silicon Cell Color: Black Colar Cells
Frame: Anodized Aluminum Alloy Front Sheet: High Transmissions Low Iron Tempered Glass
Back Sheet: TPE Quality Plastic Main Market: Asia Africa Southeast Asia
Junction Box: JB With 0.9m Wire And Connector Max. Power:: 60W 80W 120W 180W 240W
High Light:

caravan solar panels

,

commercial solar panels

Easy Carry 60W 80W Foldable 12V Solar Panel Folding Solar modules with Metal bracket and handle

Feature:


- 100% new and high quality.


- Solar panel kits with 5 meter alligator clip wire.


- Power foot, stable performance, slow decay, TUV detector material, durable and efficient.


- Suitable for single-chip products directly with the battery's positive and negative links, direct

charging, only need to distinguish between the red clip clip battery positive, black clip clip

battery negative.


- Junction box in the back of the core board, suitable for the front of the core board bonded to

the transparent fixture. That is suitable for indoor installation, such as indoor glass

installation,


- High efficiency, stable performance, slow decay, lasting and efficient.


- Aluminum alloy frame, to ensure long service life components.


- Photovoltaic power generation is the use of the semiconductor interface of the photovoltaic

effect of light energy directly into a technology. The key element of this -technology is the

solar cell. Solar cells through the series after packaging protection can form a large area of

solar cell components, coupled with the power control and related electronic devices on the

formation of photovoltaic power generation system, has been widely used in industrial

production and family life.

Specifications



Identification



mono-crystalline folding solar panels with sturdy aluminum frame



heavy duty aluminumn handle*2



heavy duty steel safety fasteners*2



adjustable and strong support legs*2 with anti-slip rubber feet



MPPT WATER-PROOF CONTROLLER 12V/24V with LED indications



5-meter lead with MC4 male and female connectors and alligator clamps



connecting cable with connectors to 5-meter lead






New Portable Fold Solar Charger Kit
Type Folded size Weight Specification
Max-power Volatage at Pmax Current at Pmax Open- Circuit Voltage

Short- Circuit

Current

Module MM KG W V A V A
OLPV-200W 1200*540*70 20 200 18 10.53 22 11.37
OLPV-190W 190 18 10.15 22 10.96
OLPV-180W 180 18 9.62 22 10.38
OLPV-170W 1000*540*70 16 170 18 9.44 22 10.2
OLPV-160W 160 18 8.89 22 9.6
OLPV-150W 150 18 8.33 22 9
OLPV-120W 810*540*70 14 120 18 6.67 22 7.2
OLPV-110W 110 18 6.11 22 6.6
OLPV-100W 610*540*60 10 100 18 5.56 22 6
OLPV-90W 90 18 5 22 5.4
OLPV-80W 80 18 4.44 22 4.8
OLPV-60W 420*540*60 9 60 18 3.33 22 3.6

Easy Carry Foldable Solar Panel Anodized Aluminum Alloy Frame Stable Performance 0







How Do Solar Panels Generate Electricity?



PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction



around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative



side of the battery, through the lamp, and return to the positive side of the battery.



With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,



much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to



a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,



hydroelectricity, nuclear, coal, wind, or solar.



AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to



transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into



the AC grid? We use an inverter.



 Company Profile:



Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most experienced module



makers in the industry. More than 8 years of operating data support OLLIN-PV’s reputation as the best



overall quality, performance, and value for solar investors. The cutting-edge SN-series leads the industry



again in advanced design, construction, and performance. The SN-series is the ideal module for any system



size in any given environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series



provides the confidence and assurance to each and every one of our customers.
