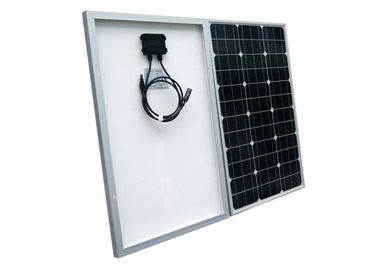

White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker

White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker
White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker

Large Image :  White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36M-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK

White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker

Description
Material: Monocrystalline Silicon Color: Black
Dimension: 670*540*30mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%
High Light:

caravan solar panels

,

commercial solar panels

 50w 60w 80watt white frame mono Solar module 12V Solar Panel charge for street light blinker


Features

1) Module efficiency : 16%

2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship

3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably

4) Excellent performance under low light conditions

5) Module certified to wind and snow loads

6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust

7) Rich selection of solar power

8) High module conversion efficiency through superior manufacturing technology

9) Anodized aluminium frame with corrosion resistance

10) Highly transparent, low iron tempered glass and anti-reflective coating

11) Excellent performance under low light conditions

Specifications:




OLLIN-40M-60M
Polycrystalline Solar Module

Mechanical Data
Cell type poly
No.of cells 36 in series(4*9)
Dimensions 670*540*30mm
Weight 5kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 40W   50W   120W
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 2.52A   3.08A   3.33A
Max. power current(Imp) 2.22A   2.78A   2.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃


White Frame Mono Solar Module / Portable Solar Panels Charge For Street Light Blinker 0



DC SOLAR PUMPING


DC solar Pumping system and other is AC solar Pumping system. DC solar pumping

systems are small systems which are for domestic purposes, offices and irrigation of small

lands up to two Acres. These DC solar pumping systems are very reliable and cheaper. In

this system the pump motor is DC motor and one controller controls its operation which is

MPPT controller responsible for smooth operation of the pump without the need for batteries.

The maximum flow with DC systems can be upto 10,000 Gallons per day with maximum head

of 200ft.

Product field:

1. Gird-connected power generation system

2. Off-grid power generation system

3. Building-integrated power generation facilities
