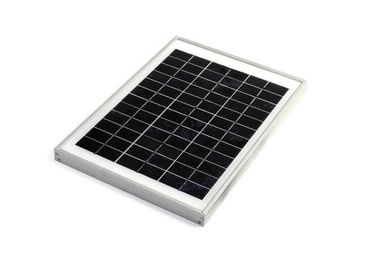

Aluminium Frame Polycrystalline Solar Panels / Solar PV Modules 3m Length Cable

Aluminium Frame Polycrystalline Solar Panels / Solar PV Modules 3m Length Cable

    • Aluminium Frame Polycrystalline Solar Panels / Solar PV Modules 3m Length Cable
  • Aluminium Frame Polycrystalline Solar Panels / Solar PV Modules 3m Length Cable

    Product Details:

    Place of Origin: zhejiang Pr. China
    Brand Name: OLLIN PV
    Certification: CE
    Model Number: OL-36P-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece/unit
    Price: Negotiable
    Packaging Details: 40PC per carton,
    Delivery Time: 20DAYS
    Supply Ability: 23000PCS PER WEEK
    Contact Now
    Detailed Product Description
    Material: Polycrystalline Silicon Color: Dark Blue
    Dimension: 280 X 185 X 10 Mm Front Glass: 3.2mm High Transmissiontempered Glass
    Frame: Anodized Aluninium Alloy Connecter: DC Or Alligator Clip
    High Light:

    solar pv modules

    ,

    solar energy panels

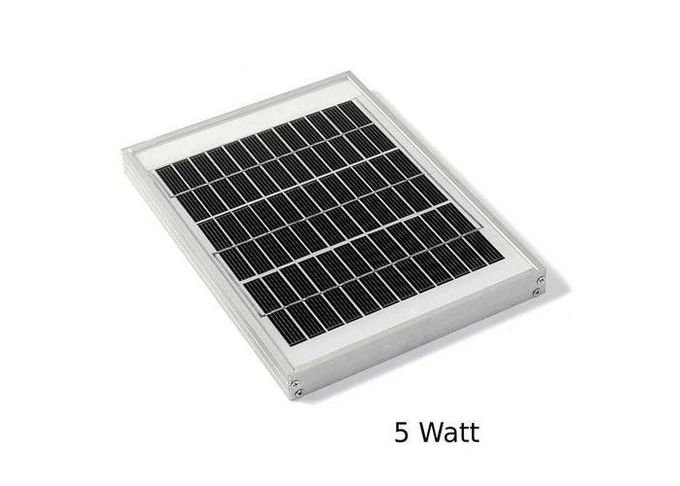

    Aluninium frame with plastic steady 5W polycrystalline PV Solar Panel charging for solar tracking device



    Features



    1) Module efficiency : 16%



    2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship



    3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably



    4) Excellent performance under low light conditions



    5) Module certified to wind and snow loads



    6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust



    7) Rich selection of solar power





    Electrical Characteristics





    ITEM NO 5W/18V
    MONO or POLY poly
    Maximum power (Wp) 5wp
    Maximum power voltage (V) 18
    Maximum power current (A) 0.27
    Open circuit voltage (V)  21.6
    Short circuit current (A) 0.29
    Number of cells (Pcs) 36
    Size of module (mm)   269x179x18
    Brand Name of Solar Cells HT
    Maximum system voltage (V) 715
    Temperature coefficients of Isc (%) 0.065+/-0.015%/°C
    Temperature coefficients of Voc (%) -(2.23+/-0.1)mv/ °C
    Temperature coefficients of Pm (%) -(0.5+-0.05)/ °C
    Temperature coefficients of Im (%) +0.1/ °C
    Temperature coefficients of Vm (%) -0.38/ °C
    Temperature Range -40°C~+85°C
    Tolerance Wattage (e.g. +/-5%) +/-5%
    Surface Maximum Load Capacity 60m/s(200kg/sq.m)
    Allowable Hail Load steel ball fall down from 1m height
    Weight per piece (kg) 0.6
    Length of Cables (mm)  3m
    Cell Efficiency (%) more than13%
    Module Efficiency (%) more than 8%
    Output tolerance (%) +/-5%
    Frame (Material, Corners, etc.) Aluminum
    Standard Test Conditions AM1.5 100mw/cm2 25°C
    Warranty 2 years product warranty and 25years 80% of power
    FF (%) 75%
    Packing 10PCS/ CTN
    Unit Price

    Aluminium Frame Polycrystalline Solar Panels / Solar PV Modules 3m Length Cable 0



    Application:



    1.water pumping



    2. water purification systems



    3. remote village lighting



    4. solar home system



    5. street and camp lights



    6. traffic signals



    7. medical facilities in remote areas



    8. microwave/radio repeater stations



    9. battery charging



    How Do Solar Panels Generate Electricity?



    PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction



    around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative



    side of the battery, through the lamp, and return to the positive side of the battery.



    With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,



    much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to



    a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,



    hydroelectricity, nuclear, coal, wind, or solar.



    AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to



    transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into



    the AC grid? We use an inverter.
