Product Details:
|
| Cell Material: | Monocrystalline Silicon | Cell Array: | 6*10 |
|---|---|---|---|
| Cell Color: | Black | Frame: | Anodized Aluminum Alloy |
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Main Market: | Asia Africa Southeast Asia |
| Junction Box: | JB With 0.9m Wire And Connector | ||
| High Light: | solar pv modules,solar energy panels |
||

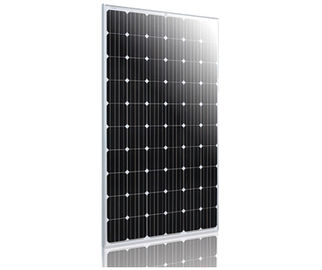

260w Monocrystalline PV Solar Panel powered to heating swimming pools pumps indoor and out door light battery
Product features:
1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT
2. Anodized quality aluminum frame, beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Product field:
1. Gird-connected power generation system
2. Off-grid power generation system
3. Building-integrated power generation facilities
| TYPE | 250 | 255 | 260 |
| Powder Class | 250w | 255w | 260w |
| Max. Power Voltage(UMPP)* at STC** | 30.9V | 31.15V | 31.35V |
| Max. Power Current (IMPP) at STC | 8.1A | 8.19A | 8.3A |
| Open Circuit Voltage (UOC) at STC | 36.8V | 36.8V | 37V |
| Short Circuit Current (ISC) at STC | 8.75A | 8.81A | 8.92A |
| Module Efficiency | 15.4% | 15.7% | 16% |
| MPP: Maximum Power Point | |||
| STC (Standard Test Conditions): 1000W/m2, 25℃, AM 1.5 | |||
| SPECIFICATIONS | |
| Dimensions | 1640*992*45MM |
| Weight | 19.5Kg |
| Frame | Aluminium hollow-chamber frame on each side |
| Glass | Low-iron and tempered glass 3.2mm |
| Cells | 60 pcs monocrystalline Si-cells (156*156 mm) |
| Cell Embedding | EVA |
| Back-Foil | FEVE / PET / FEVE |
| Junction Box | TUV certified |
| Cable | 4mm2 solar cable 2*900 mm |
| Temperature Range | -40 ℃…+85℃ |
| Load Capacity | 2400 Pa (IEC 61215) |
| Product Warranty | 10 years |
| Powder Guarantee | 12 years 90%, 30 years 80% |
| CHARACTERISTICS | |
| Max. System Voltage | 1000V/DC |
| Temperature-Coefficient ISC | +0.02973%/℃ |
| Temperature-Coefficient UOC | -0.38038%/℃ |
| Temperature-Coefficient Pmpp | -0.57402%/℃ |
| Normal Operating Cell Temperature*** | 45℃ |
SOLAR PUMPING
Solar AC Pumping system consists of AC Pump, Pump Controller and solar panels. These are big systems
of motor power varying from 2KW to 60KW and their up-front costs vary from Rs.1M to 20M. These AC
pumps are for all kinds of agriculture and big farming applications. The flow can vary from 10m3 per hour to
300 m3 per hour with head varying from 100 ft to 600 ft.
Solar Pumping is very specialized job and calls for high technical expertise starting from pump design &
selections to installation and commissioning of systems. The customers should buy systems from
professional companies and get installed from trained pump technicians.
Solar pumps are very economical if you compare operational costs with the conventional pumping system
working through Diesel generators or Utility Grid. The payback varies from three to seven years depending
on the type of system you are buying.
| Module | 250W Mono Solar Panel | ||
| Container | 20′ GP | 40′ GP | 40′ HQ |
| Pieces per pallet | 24 | 27 | 27 |
| Pallets per Container | 12 | 28 | 28 |
| Pieces per Container | 356 | 756 | 756 |
|
