|Place of Origin:||zhejiang Pr. China|
|Brand Name:||OLLIN PV|
|Minimum Order Quantity:||1 piece/unit|
|Packaging Details:||2PC per carton,|
|Supply Ability:||2300PCS PER WEEK|
|Name:||Residential Solar Panel Systems||Color:||Black|
|Dimension:||520*365*18mm||Front Glass:||3.2mm High Transmissiontempered Glass|
|Frame:||Anodized Aluninium Alloy||Maximum System Voltage:||DC1000V|

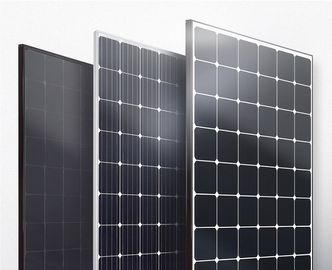

Portable residential solar panel systems / marine solar panels DC1000V
residential solar panel systems Specification
Peak Power (Pmax):25W
Short Circuit current (Isc): 1.54A
Open circuit voltage (Voc): 22V
Optimum operating current (Imp): 1.43A
Optimum power voltage (Vmp): 17.5V
All technical data at STC
Test condition:1000W/m², AM1.5,25℃
Small household lighting system.
Portable solar power.
All small power electrical devices & small PV system.
residential solar panel systems Specifications:
|Open Circuit Voltage(Voc)||22.41V|
|Short circuit current (Isc)||1.54A|
|Temperate coefficient of Isc||(010+/- 0.01) %/℃|
|Temperate coefficient of Voc||- (0.38 +/-0.01) %/℃|
|Temperate coefficient of power Voc||-0.47%/℃|
|Temperature range||-40℃to +80℃|
|Frame||Heavy duty aluminum|
|Kind of connection||waterproof junction box, can be customized|
|Guarantee of power||90% within 10 years 80% within 25 years|
|Kind of glass and its thickness||Low Iron, high transparency tempered glass of 3.2mm|
|SLA Battery Voltage||12V|
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our
main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters,
Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast delivery and best service!
A trustable and reliable supplier for your business. We have already exported our products around the world
includes Russian, Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me any time!
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
