Product Details:
|
| Cell Material: | Polycrystalline Silicon | Name: | PV Solar Panels |
|---|---|---|---|
| Cell Color: | Blue | Frame: | Anodized Aluminum Alloy |
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Back Sheet: | TPE Quality Plastic |
| Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
| High Light: | marine solar panels,solar energy panels |
||

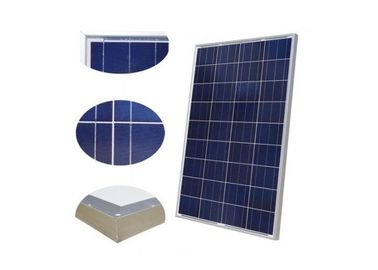

Polycrystalline Silicon PV Solar Panels For Solar Garden Lighting 6*12
PV Solar Panels features:
1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT
2. Anodized quality aluminum frame, beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Service.
Pre sale:
1. Our sales representative and engineer work together to answer your questions and offer solution for free
2. We choose the best product for you to make sure it worth its real value
3. We design the best solution with good perfomance for you,manwhile save every cent of your money.
After sale:
We provide 10 years Warranty for the product, 12 years warranty for 90% power production ,25 years
warranty for 80% power production.
PV Solar Panels Specifications:
Solar Panel Parameters 300W
Optimized working voltage 37.08V
Optimized working current 8.09A
Open circuit voltage 45.90V
Short circuit current 8.80A
Nominal power 300W
Operating temperature -40℃ to+85℃
Maximum system voltage 1000VDC(IEC)/600VDC(UL)
Series fuse rated value 20A
Power tolerance ±3%
Cell specification 156×156mm(6inch)
Arrangement quantity 72(6×12)
Solar panel dimension 1956×992×50mm
Weight 23.0kg
Glass specification 3.2mm(0.13inch) tempered glass
Frame Anodised aluminium alloy
Rated operating temperature 45±2℃
Pmax temperature parameter -(0.48±0.05)%/℃
Voc temperature coefficient: -(0.34±0.1)%/℃
Isc temperature coefficient 0.04±0.01%/℃
Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃.
Package included
1 piece 25W poly solar panel with out box
PV Solar Panels Application
1) Solar garden lighting
2) Small home lighting system
3) Solar street lighting
4) Solar Outdoor Advertising
