Yuyao Ollin Photovoltaic Technology Co., Ltd.
 |
| Place of Origin: | zhejiang Pr. China |
| Brand Name: | OLLIN PV |
| Certification: | CE |
| Model Number: | OL-36M-50 |
| Minimum Order Quantity: | 1 piece/unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 2PC per carton, |
| Delivery Time: | 20DAYS |
| Supply Ability: | 2300PCS PER WEEK |
| Material: | Polycrystalline Silicon | Color: | Black |
|---|---|---|---|
| Dimension: | 670*540*30mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
| Frame: | Anodized Aluninium Alloy | Maximum System Voltage: | DC1000V |
| Power Tolerance: | ±5% | ||
| High Light: | caravan solar panels,commercial solar panels |
||

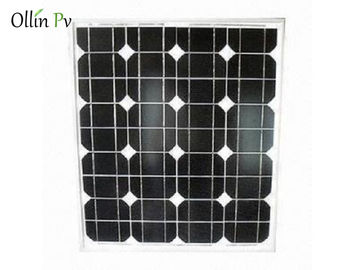

street light system 50w 60w 80watt white frame monocrystalline silicon 12V Solar Panel
Features
1) Module efficiency : 16.7%
2) Warranty : Chubb products liability insurance, errors and omissions(E and O)insurance 10 year 90%
power warranty. 25 year 80% power warranty
3) Tolerance : Guarantee positive power tolerance(0 to 3%)
Module can bear snow loads up to 5400Pa and wind loads up to 2400Pa
4) Excellent performance under low light conditions
5) Module certified to wind and snow loads
6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
7) Rich selection of solar power
Specifications:
| OLLIN-40M-60M | |||||||
| monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | mono | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 670*540*30mm | ||||||
| Weight | 5kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 40W | 50W | 120W | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 2.52A | 3.08A | 3.33A | ||||
| Max. power current(Imp) | 2.22A | 2.78A | 2.67A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
1, We use the carton and inside use the foma to protect the solar panel.
2, usually we suggest coustomer to make the wooden frame.
3, if u order more,we can delivery to your ningbo/yiwu Warehose by free.
4, shipping via sea,express,air-cargo optional.
Company services:
1, Respect for customers, understanding customers, exceed customer expectations continue to provide
products and services.
2, Perfect service system, strengthen the pre-sale, sale, service, for customers in the use of goods in a
timely manner to help solve various problems.
3, Delivery on time and send the goods as fast as we can.
