Place of Origin: | zhejiang Pr. China |
Brand Name: | OLLIN PV |
Certification: | CE |
Model Number: | OL-36M-160 |
Minimum Order Quantity: | 1 piece/unit |
---|---|
Price: | Negotiable |
Packaging Details: | 2PC per carton, |
Delivery Time: | 20DAYS |
Supply Ability: | 2300PCS PER WEEK |
Color: | Black | Material: | Monocrystalline Silicon |
---|---|---|---|
Dimension: | 1470*680*40mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
Frame: | Anodized Aluninium Alloy | Maximum System Voltage: | DC1000V |
Power Tolerance: | ±5% | ||
High Light: | sunpower solar panels,commercial solar panels |

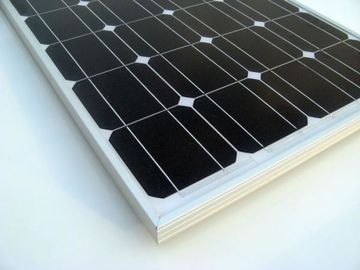

Mono 160W 12V Solar Panel Caravan Home Off Gird Battery Charging Power
Features
Solar panel constituent part :
1. Stalinite (Protect generate conductor from damage ,such as solar cell )
2. EVA (Fix aluminium alloy and generate conductor )
3. Solar cell (Generation function )
4. Backboard(PET) ,Sealing ,insulation and waterproof )
5. Aluminium alloy (Seal and support function)
6. Juntion box ( Protect generation system and transfer current function )
7. Silica gel ( Sealing function )
Applications:
1) Providing realiable and economical solar electric systems for remote power solutions;
2) Designed for use on residential and small commercial buildings;
3) Ideal for solar – electric water pumping systems;
4) Logical solution for the remote energy needs of the oil & gas industry;
5) Solar lighting system;
Specifications:
Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
Temperature coefficients of Isc | +0.049% /℃ | ||||
Temperature coefficients of Voc | -0.340% /℃ | ||||
Temperature coefficients of Pmax | -0.430% /℃ | ||||
Solar Cell | Poly solar cells 156x156 mm | ||||
Front Cover | 3.2 mm thick, tempered glass | ||||
Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
Encapsulant | EVA (ethylene vinyl acetate) | ||||
Frame | Double-layer anodized aluminium alloy | ||||
Junction Box | IP65 rated | ||||
Maximum System Voltage | DC1000V (IEC) | ||||
Maximum Series Fuse | 15 A | ||||
Operating Temperature | -40℃~+85℃ | ||||
Storage Temperature | -40℃~+85℃ | ||||
Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
Application Class | Class A | ||||
Packing configuration | Carton.Customers packing requirement is acceptable. |
SOLAR PV SYSTEM
Solar PV system includes different components that should be selected according to your system type, site
location and applications. The major components for solsr PV system are solar charge controller, inverter,
battery bank, auxiliary energy sources and loads (appliances).
PV module - converts sunlight into DC electricity.
Solar charge controller - regulates the voltage and current coming from the PV panels going to battery and
prevents battery overcharging and prolongs the battery life.
Inverter - converts DC output of PV panels or wind turbine into a clean AC current for AC appliances or fed
Back into grid line.Battery - stores energy for supplying to electrical appliances when there is a demand.
Load - is electrical appliances that connected to solar PV system such as lights, radio, TV, computer,
refrigerator, etc.
Auxiliary energy sources - is diesel generator or other renewable energy sources.
Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience.
What we can provide: High quality and very competitive price, fast delivery and best service!
A trustable and reliable supplier for your business. We have already exported our products around the world
includes Russian, Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me any time!
Contact Person: LEE
Tel: +8613651897219
