| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-15 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

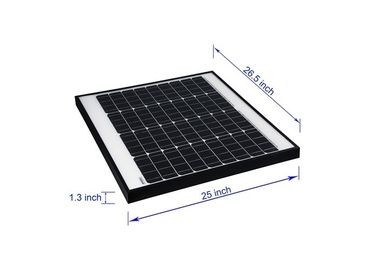

Anodized Aluninium Alloy black color frame 15watt mono Black Solar PV Panels
Product Description
--- First-class production technology and packaging technology.
--- Adopting the world’s leading technology of silicon and polycrystalline power, higher conversion efficiency.
Beautiful, stable, easy to take down the anodic aluminum frame electric degrees and has a wind resistant,
anti-snow function.
--- After the minus reflection process of the battery surface, it increases the absorption rate.
--- By the high transmittance, low iron tempered glass, antiaging of the EVA(polyethylene-vinyl acetate), high
performance crystalline 6.silicon solar cells, good weather resistance TPT(fluoroplastics composite
membrane) by pyramid, has a good weather resistance and anti-UV, hail, water-proof capacity.
--- Built-in bypass diode inside the junction box, which could prevent the effects dark spots of local damage
to cells.
Electrical Characteristics
| ITEM NO | 15W/19V |
| MONO or POLY | mono |
| Maximum power (Wp) | 15wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.83 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.89 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 340*280*18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | 1m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
You own the sun. Well, not exactly, but you do have the right to its power. Why not put it good use? With
solar technology, you can harness the sun's energy and turn your rooftop into a power plant.
Packaging Details
1 carton box and pallet
2 According to your requirement/Suitable for shipment
Delivery Details
1 15~20 working days after received deposit
2 Based on Qty
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: Where is your factory located? How can I visit there?
A: Our factory located in yuyao city zhejiang Pr, China. Welcome to visit us.
Q3. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to test and check quality.
Q4: Could you print our company LOGO on the nameplate and package?
A: Yes, we offer OEM service.
Q5. What about the lead time?
A:Sample needs 710days, mass production time needs 3-4 weeks for order quantity more than 2MW.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for our products
