|Dimension:||1940*990*45mm||Front Glass:||3.2mm High Transmissiontempered Glass|
|Frame:||Anodized Aluninium Alloy||Operating Temperature:||-40℃ To+85℃|
260 Watt Black Solar Pv Panels,
3.2mm Black Solar Pv Panels,
36.9v Black Solar Pv Panels

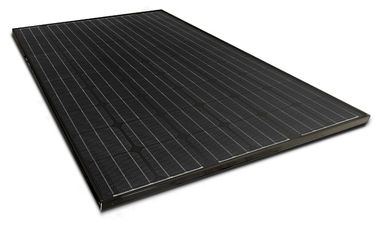

black PV solar panel 260wp watt for roof tile Black Solar PV Panels Building-integrated power
1) 3 times inspection from material to goods,to low down the defective rate to the minimum,including IV
test ,EL test.
2) All of our solar panel product haves passed the ISO14001,ISO9001,ISO18001,CE,TUV approve.
3) We csn provide solar panel from 5w to 360w,giving you customized service.
4) Sunket using advanced automatic equipment to control product quality.
|Max power voltage||36.54v||36.88v||36.9V||36.88v||36.9V|
|Max power current||29.74V||29.86V||29.94V||29.86V||29.94V|
|Open circuit voltage||8.96A||9.2A||9.35A||9.72A||9.99A|
|Short circuit current||8.3A||8.5A||8.66A||8.98A||9.33A|
|Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5|
|Nominal Operating Cell Temperatur||45 ± 2℃|
|Temperature coefficients of Isc||+0.049% /℃|
|Temperature coefficients of Voc||-0.340% /℃|
|Temperature coefficients of Pmax||-0.430% /℃|
|Solar Cell||Poly solar cells 156x156 mm|
|Front Cover||3.2 mm thick, tempered glass|
|Back Cover||TPT (Tedlar-PET-Tedlar)|
|Encapsulant||EVA (ethylene vinyl acetate)|
|Frame||Double-layer anodized aluminium alloy|
|Junction Box||IP65 rated|
|Maximum System Voltage||DC1000V (IEC)|
|Maximum Series Fuse||15 A|
|Max. Wind Load / Max. Snow Load||2400Pa / 5400Pa|
|Application Class||Class A|
|Packing configuration||Carton.Customers packing requirement is acceptable.|
1. Countryside and remote areas
2. Home and vacation villa
3. Railway signal
4. Beacon and beacon lights
5. Small-scale desalination
6. Emergency System
7. Street lighting system
8. Emergency communication system
9. Vehicle and ship systems
10. Cathodic protection
11. Wind-Light complementary power supply system
12. Water quality and environmental data monitoring system
• Are you manufacturer or trading company?
--- we are a manufacturer of solar panel, solar system and other solar modules.
• What kind of certification do you have?
--- We have already got CE,RoHS certifications.
• What is the warranty of solar panels?
--- 3-year warranty on material and workmanship,90% power output in 10 years,80% in 25 years
• How to get the best price?
---We need more information about your demands, such as the power/material/Qty/size, then We can
suggest the suitable type and offer the best price.
• How can I know the quality?
---We are willing to provide you samples to test the quality. In addition, we also sincerely invite you to our
company to evaluate the products, and give us more suggestions.
• Why do business with OLLIN PV Technology?
A. As the manufacturer, we have professional technical persons, providing you the most professional
B. Competitive price will be provided.
C. We will spare no efforts to off the best service, answer your questions the first time.
D. Our delivery time is shorter and can be guaranteed.
