White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color

White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color
White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color

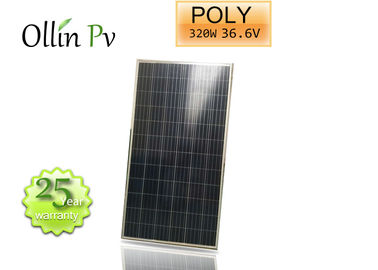

Large Image :  White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-72P-310
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
Delivery Time: 20DAYS
Supply Ability: 1500UNITS PER WEEK

White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color

Description
Cell Material: Polycrystalline Silicon Cell Array: 6*12
Cell Color: Blue Frame: Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector
High Light:

marine solar panels

,

solar energy panels

white frame PV Solar Panels 300w 310w 320w polycrystalline silicon Solar Roof Based On Grid Power Generation





Product features:



1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT



2. Anodized quality aluminum frame, beautiful appearance



3. Wind resistance, pressure resistance, high conversion efficiency




Service.



Pre sale:



1. Our sales representative and engineer work together to answer your questions and offer solution for free



2. We choose the best product for you to make sure it worth its real value



3. We design the best solution with good perfomance for you,manwhile save every cent of your money.



After sale:



We provide 10 years Warranty for the product, 12 years warranty for 90% power production ,25 years



warranty for 80% power production.



Specifications:



Solar Panel Parameters 300W



Optimized working voltage 37.08V



Optimized working current 8.09A



Open circuit voltage 45.90V



Short circuit current 8.80A



Nominal power 300W



Operating temperature -40℃ to+85℃



Maximum system voltage 1000VDC(IEC)/600VDC(UL)



Series fuse rated value 20A



Power tolerance ±3%



Cell specification 156×156mm(6inch)



Arrangement quantity 72(6×12)



Solar panel dimension 1956×992×50mm



Weight 23.0kg



Glass specification 3.2mm(0.13inch) tempered glass



Frame Anodised aluminium alloy



Rated operating temperature 45±2℃



Pmax temperature parameter -(0.48±0.05)%/℃



Voc temperature coefficient: -(0.34±0.1)%/℃



Isc temperature coefficient 0.04±0.01%/℃



Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃.




White Frame PV Solar Panels / Polycrystalline Silicon Solar Panels Blue Cell Color 0









Package included



1 piece 25W poly solar panel with out box





Application



1) Solar garden lighting



2) Small home lighting system



3) Solar street lighting



4) Solar Outdoor Advertising
