|Material:||Polycrystalline Silicon||Color:||Dark Blue|
|Dimension:||606*670*25mm||Front Glass:||3.2mm High Transmissiontempered Glass|
|Frame:||Anodized Aluninium Alloy||Main Market:||Asia Africa Southeast Asia|
marine solar panels,
solar energy panels

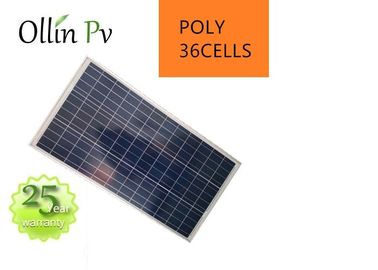

PV Solar Panels Polycrystalline silicon 50w 60W 80w solar panel solar cell solar panel price Pakistan
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control
3 . High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. PET sheet imported from Toyo Japan with advanced encapsulatiing material, laminated in totally automatically
machine by experienced technician.
5. excellent performance in harsh weather
6. Outstanding electrical performance under high temperature and low irradiance conditons
|Peak power||25W 0~+3%Toleracne|
|Optimum Operating Voltage(Vmp)||18.0V|
|Optimum Operating Current(Imp)||2.77A|
|Maximum system voltage||DC1000V|
5 years product defect warranty.
90% in 10 years, 80% of 25 years.
|No. of Cells||36(4*9) pcs|
|Cell dimension||mono 156*156mm|
|Front cover||3.2mm tempered glass|
|Frame||Anodized aluminum alloy|
|Junction Box||IP67/IP65 rated|
|Temperature coefficient Voc(%)||+0.04±0.015%/°c|
|Temperature coefficient Pm(%)||-0.3±0.02%/°c|
|Temperature coefficient Im(%)||-0.45±0.05%/°c|
|Temperature coefficient Vm(%)||+0.04%/°c|
|Surface pressure||60m/s(200kg /m² )|
1 piece 25W poly solar panel with out box
1) Solar garden lighting
2) Small home lighting system
3) Solar street lighting
4) Solar Outdoor Advertising
5) For a variety of low-power appliances, emergency lights, advertising lights, traffic
lights,household lights, fans, such as solar water pumps, solar lights, small solar systems
