| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-90 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

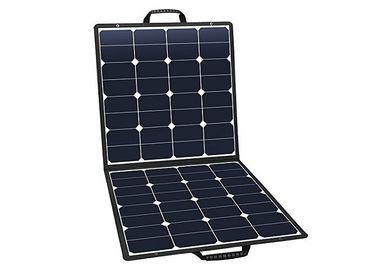

Mono folding solar panel with heavy duty padded carry bag 90Watt black color solar cells
Solar Module
Rated Maximum Power 90W
Current at Pmax (lmp) 5.18A
Volatage at Pmax (Vmp) 17.4V
Short- Circuit Current(lsc) 5.76A
Open- Circuit Voltage( Voc) 21.4V
Max System V 1000V
Max Senes Fuse Rating 10A
Application Class A
Nominal Operating Cell Temp -40 ℃ TO+85℃
Technical Parameters
Automatic voltage identification 12V/24V
Maximum input voltage 55V
Maximum charging current 10A/15A
Maximum output current 10A/15A
overdischarge voltage 10.8v/12v/, 21.6v/24v
overcharge voltage 14.4v/12v/, 28.8v/24v
Low voltage recovery(PV) 11.6v/12v/, 23.2v/24v
Charging reconnect 13.8v/12v/, 27.6v/24v
Overvoltage cutoff voltage 17.0v/12v/, 34v/24v
Controller for self power consumption <10mA
Working environment temperature-40 to +60℃
Protection grade ip67
Temperature compensation
Parameters Table
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Widely Used
Ideal for hiking, camping, military use, off-grid solar panel system, caravan, RV, boat etc.
Adjustable corrosion resistant aluminum stand, heavy duty handle and latches for longevity.
Compatible with gel, sealed, and flooded batteries.
Expandable
Designed for expansion, you can add panels to the the system based on your available space.
Q: What is your terms of payment?
A: For Sample:100% T/T in advance
For Container: 30% T/T in advance,remained 70% before loading container
Q: What are your terms of delivery?
A: EXW, FOB, CIF etc.
Q: How about your delivery time?
A: For Sample:7-10 days
For Container:about 20 days
Q: Warranty?
A: 5 years
|
|
