Product Details:
|
| Solar Panel: | 330W Solar Panel | Load Power (W): | 1000W |
|---|---|---|---|

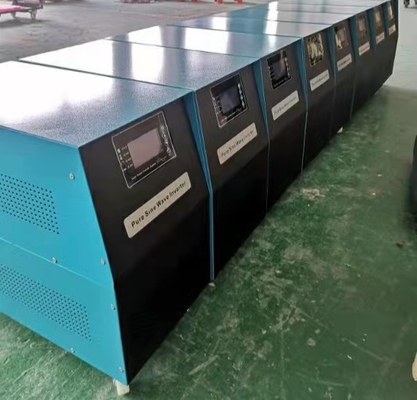

| Inverter: | Off Grid Pure Sine Wave | Charging Time: | 8-10 Housr To Charge The Battery Fully |

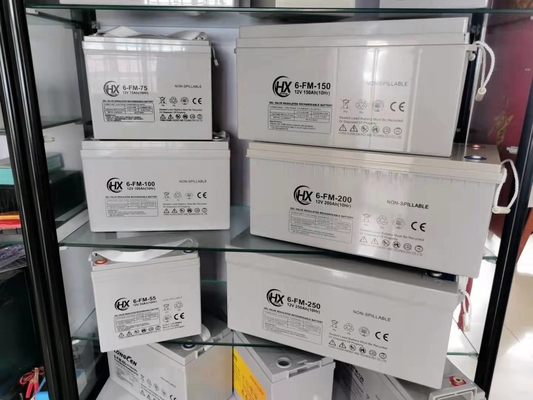

| Battery: | 12V/100AH SMF Lead Acid Battery | Application: | Water Pump |
| High Light: | complete solar power system,off grid solar power systems |
||

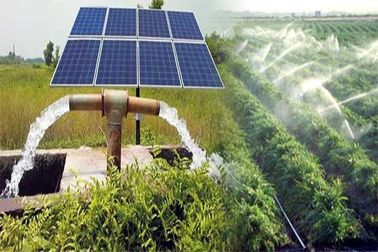

Off grid 1.5kw solar generation power for water pump system Residential Solar Power Systems
Description:
The Finished Products include:
1. Solar pump with 3m cable, longer cable is available if required
2. MPPT Controller
3. Water level sensor or float switch:10meter cable, longer cable is available

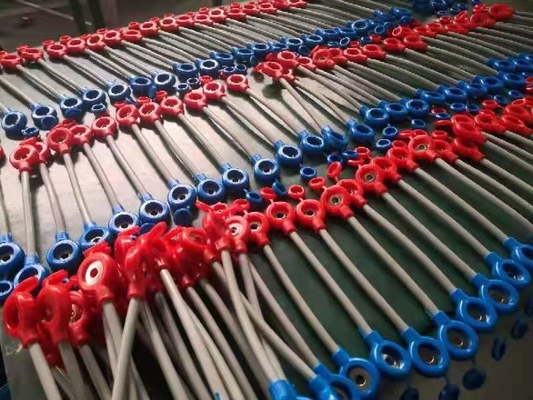

4. Cable for solar panel: 6m, longer cable is available
5. Cable connector
6. Solar panels are option
7. Rope to hang the pump
8. Installation Manual
ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non - sensor motor.
2.Technics innovation
Adopt double plastic package for rotor and stator, motor insulation ≥ 300MΩ, the motor security was much improved.
3.Structure innovation
Oil filling,convenient installation and environmental protection.
MATERIAL OF PARTS:
Outlet:stainless steel
Pump body: stainless steel
Motor casing:stainless steel
Motor stator: 100% copper wiring
Motor rotor: permanent magnetism
Screw:stainless steel
Bearing:NSK
| ELECTRICAL PERFORMANCE | ||||||
| Module type | PLM-250M-60 | |||||
| Power output | W | 250 | 255 | 140 | 145 | 150 |
| Power output tolerances | % | 0-3 | ||||
| Voltage at Pmax | V | 30.49 | 30.92 | 31.18 | 31.48 | 31.73 |
| Current at Pmax | A | 8.2 | 8.25 | 8.34 | 8.42 | 8.51 |
| Open-circuit voltage | V | 38 | 38.1 | 38.2 | 38.31 | 38.42 |
| Short-circuit current | A | 8.78 | 8.84 | 8.92 | 8.96 | 8.99 |
| OPERATING CONDITIONS | ||||||
| Max.system voltage | 1000V | |||||
| Limiting reverse current | 15A | |||||
| Operating temperature range | -40℃ to 85℃ | |||||
| Max.static load front | 5400Pa | |||||
| Max.static load back | 2400Pa | |||||
| Max.hailstone impact (diameter/velocity) | 25mm/23m/s | |||||
| MECHANICAL CHARACTERISTICS | ||||||
| Front cover(material/thickness) | Low-iron tempered glass / 3.2mm | |||||
| Backsheet(color) | white/black | |||||
| Cell(quantity/material/dimensions) | 60 / monocrystalline silicon / 156*156mm | |||||
| Frame(material/color) | Anodized aluminum alloy / silver | |||||
| Junction box(protection degree) | >= IP65 | |||||
| Cable&Plug connectors | 900mm / 4mm² &MC4 compatitible / IP67 | |||||
| Module Dimensions (L /W /H ) | 1640mm*992mm*40mm | |||||
| Module Weight | 18.1kg | |||||
Explore the following resources to reduce your electricity use:
Home energy audits: A home energy audit can help you understand where your home is losing energy and
what steps to take to improve the efficiency of your home.
Appliances and electronics: Use your appliances and electronics more efficiently, or consider investing in
highly efficient products.
Lighting: Switch to energy efficient lighting, such as LED light bulbs.
Heating and cooling: If you use electricity to heat and cool your home, your heating and cooling needs will
significantly affect the amount of solar energy you need. Weatherizing your home and heating and cooling
efficiently will reduce the amount of electricity you need to produce with solar.
Lower your power bill and protect from power outages
Traditional grid-tied solar systems only operate when utility power is available. Without energy storage, a
grid-tied PV solar system shuts down during a power outage. Don’t be left in the dark when you need power
the most, the addition of batteries and a backup inverter can provide seamless, uninterrupted power for
your household during an outage while still offsetting your power bill.
