| Brand Name: | OLLIN PV |
| Model Number: | OL-36p-45 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

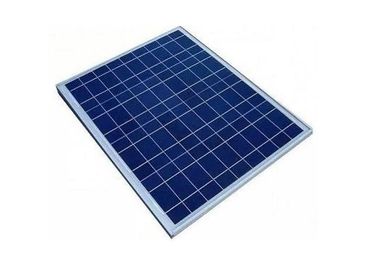

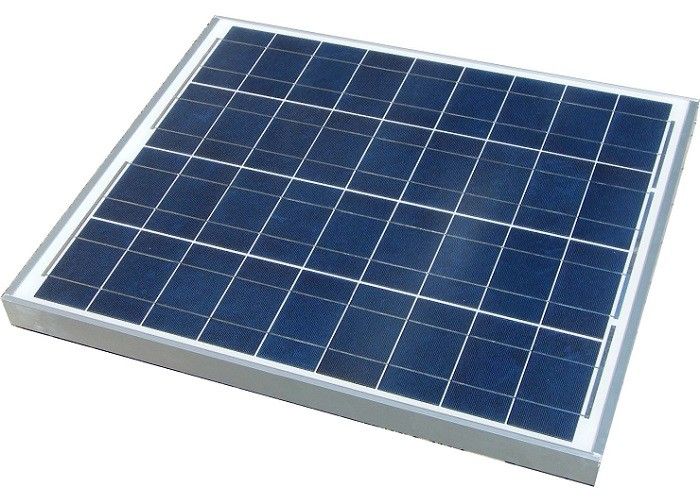

1. Use A grade solar cell, high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength for easy installation;
4. Anti-aging EVA and high flame resistant Back Sheet, to provide long-life and enhanced cell performance;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6.100% apply EL(electroluminescence) technology;
7.5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for
80% power output;
| Model | OL35P-36 | OL40P-36 | OL45P-36 | OL50P-36 |
| Rated Maximum Power at STC | 35W | 40W | 45W | 60W |
| Maximum Power Voltage (Vmp) | 17.4V | 17.6V | 17.5V | 17.8V |
| Maximum Power Current (Imp) | 2.59A | 2.86A | 3.14A | 3.37A |
| Open Circuit Voltage ( Voc) | 21.8V | 22.1V | 22.1V | 22.4V |
| Short Circuit Current (Isc) | 2.84A | 3.09A | 3.45A | 3.68A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||
| Mechanical Parameters | ||||
| Cell Type | Poly-crystalline 156x156mm (6inch) | |||
| No. of Cells | 36 (4x9) | |||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||
| Junction Box | IP65&IP67 Rated | |||
| Output Cable | Section Size: 2.5mm² | |||
| Frame | Anodized Aluminum Alloy | |||
| No. of Bypass Diodes | 2 | |||
| Connector | MC4 Compatible | |||
| Working Conditions | ||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | |||
| Operating Temperature | -40°c~+85°c | |||
| Maximum Series Fuse | 15A | |||
| NOCT | 45±2°c | |||
| Application Class | Class A | |||
| Temperature Coefficient | ||||
| Temperature Coefficient of Pmax | -0.41%/°c | |||
| Temperature Coefficient of Voc | -0.31%/°c | |||
| Temperature Coefficient of Isc | +0.06%/°c | |||
FAQ:
Q1:What’s your payment terms?
A1:We accepted almost all payment terms, like T/T, L/C etc.
Q2: OEM Service
A1: Firstly, we could print your logo on the outer panel case. Also, we could offer you a special discount if
your quantity is large (to 500pcs or so).
Q3: Warranty Process
A3:Normally, the inverter could work for at least 25 years and we supply 3 years warranty.
Q4: How long is your delivery time?
A4:Usually, it needs 15 days from material preparation to products completed, but since we have many
samples in stock, we could send out the bulk within 3-5 days if you need urgently.
