Product Details:
|
| Front Glass: | 3.2mm High Transmissiontempered Glass | Frame: | Anodized Aluninium Alloy |
|---|---|---|---|
| Material: | Polycrystalline Silicon | Connecter: | DC Or Alligator Clip |
| Color: | Dark Blue | Dimension: | 148x137x18 Mm |

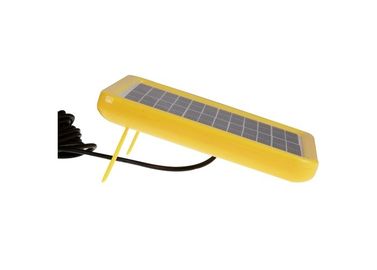

yellow color frame with plastic steady 2watt Polycrystalline PV Solar Panels charging for solar tracking device
Product Feature:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan
with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high
temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.
Electrical Characteristics
| ITEM NO | 2W/12V |
| MONO or POLY | poly |
| Maximum power (Wp) | 2wp |
| Maximum power voltage (V) | 12 |
| Maximum power current (A) | 0.16 |
| Open circuit voltage (V) | 14.4 |
| Short circuit current (A) | 0.18 |
| Number of cells (Pcs) | 24 |
| Size of module (mm) | 148x137x18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 0.3 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 20PCS/ CTN |
| Unit Price |
Product Application
Our solar panels are widely used in the following fields:
---Large on-grid and off-grid solar power projects
---Commercial/Industrial building roof-top solar systems
---Residential roof-top solar systems
---Agricultural ground-mounted solar systems
---Other industrial and commercial applications
---Small off-grid solar systems, like solar pump system, home solar power system, solar
lighting system, etc.
Photovoltaic Solar Products includes the following:
1, monocrystalline solar panel
2, polycrystalline solar panel
3. mono solar module
4. poly solar module
5, solar system
6, the other solar products
We are focus on supplying 10w to 340w both mono solar panels and poly solar panels with
famous certificates, top quality and highest efficiency for all the world markets.
