Product Details:
|
Material: | Polycrystalline Silicon | Color: | Dark Blue |
---|---|---|---|
Dimension: | OEM | Frame: | No Frame |
Epoxy: | Solar Panels | Shape: | Round |
High Light: | mini solar panels,mini solar cell |

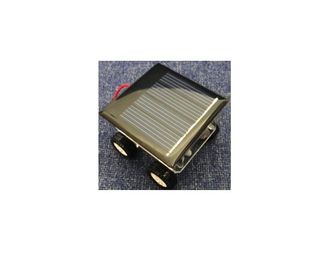

Epoxy Resin Solar Panel board DIY solar lawn lights small solar water pumps solar radio solar flashlight
Product Features:
High conversion rate, high efficiency output
Excellent low-light effect
Epoxy resin with high transmittance quality, hardness is 80, the surface scratches can not be avoided, but
does not affect the workingUnique technology makes assembly solid and beauty can anti-snow, easy to
install
Unique technology to avoid water freezing and deformation
Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg | |
5V30MA | 0.15W | 5-5.5VDC | Charge for 3.6V-3.7V Battery | 53x30x3mm | 0.005kg |
5V60MA | 0.3W | 68x36x3mm | 0.01kg | ||
5V150MA | 0.75W | 99x69x3mm | 0.02kg | ||
5.5V50MA | 80x35x3mm | 0.01kg | |||
5.5V60MA | 0.3W | 100x28x3mm | 0.01kg | ||
5.5V100MA | 0.55W | 84.5x55.5x3mm | 0.018kg | ||
5.5V120MA | 0.66W | 80x60x3mm | 0.02kg | ||
6.5V90MA | 0.6W | 6-6.5VDC | 120x70x3mm | 0.03kg | |
6V100MA | 0.6W | 120x38x3mm | 0.016kg | ||
6V330MA | 2W | 136x110x3mm | 0.06kg | ||
6V500MA | 3W | 145x145x3mm | 0.07kg | ||
6V580MA | 3.5W | 135x165x3mm | 0.077kg | ||
6V750MA | 4.5W | 145x145x3mm | 0.07kg | ||
8V150MA | 1.2W | 8VDC | Charge for 6V Battery | 145x95x3mm | 0.05kg |
12V250MA | 3W | 12VDC | Charge for 8V Battery | 145x145x3mm | 0.07kg |
18V190MA | 3.5W | 18VDC | Charge for 12V Battery | 165x135x3mm | 0.082kg |
18V200MA | 4.2W | 200x130x3mm | 0.109kg |
Application:
Solar garden lighting
Small home lighting system
Solar street lighting
Solar outdoor advertising
For a variety of low-power appliances, such as emergency lights, advertising lights, traffic lights, home
lights, fans, solar water pumps, solar lights and small solar systems and so on.
solar lawn lights, solar wall lights, solar products, solar toys, solar radio, solar flashlight, solar cell phone
charger, small solar water pumps, solar home / office power and portable power systems.
On the use and testing of: products can only be in the sun, the nominal peak power is the midday sun, the
sun early in the morning one night and not the strong sun is not up to the nominal, buyers pay attention to
this point and in the light! inside the room, the solar panels are almost undetectable what value! This is an
ordinary light and the sun's light caused by very different! So be sure to test the under sunny!
How Do Solar Panels Work?
When photons hit a solar cell, they knock electrons loose from their atoms. If conductors are attached to
the positive and negative sides of a cell, it forms an electrical circuit. When electrons flow through such a
circuit, they generate electricity. Multiple cells make up a solar panel, and multiple panels (modules) can be
wired together to form a solar array. The more panels you can deploy, the more energy you can expect to
generate.
