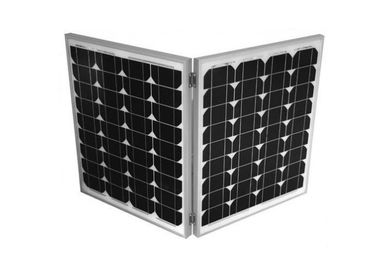

80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective

80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective
80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective

Large Image :  80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-72M-80
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: heavy duty padded carry bag and carton
Delivery Time: 20DAYS
Supply Ability: 1200UNITS PER WEEK

80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective

Description
Cell Material: Monocrystalline Silicon Cell Color: Black
Frame: Anodized Aluminum Alloy Front Sheet: High Transmissions Low Iron Tempered Glass
Back Sheet: TPE Quality Plastic Main Market: Asia Africa Southeast Asia
Junction Box: JB With 3m Wire And Connector Max. Power:: 60W 80W 120W 180W 240W
High Light:

fold out solar panels

,

foldable portable solar panels

80Watt 12V Folding solar panel Foldable Monocrystalline Solar Suitcase for hiking camping and military use



Features:





1. Nominal Operating Cell Temp -40 ℃ TO+85℃

2. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.

3. Providing special design.

4. Module efficiency : 16%

5. Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship

6. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably

7. Excellent performance under low light conditions

8. Load test: module certified to wind and snow loads

9. Anti-reflective,hydrophobic layer with light absorption and minimal surface dust



 Product parameter



Type Folded size Weight Specification
Max-power Volatage at Pmax Current at Pmax Open- Circuit Voltage

Short- Circuit

Current

Module MM KG W V A V

A

OLPV-200W 1200*540*70 20 200 18 10.53 22

11.37

OLPV-190W 190 18 10.15 22

10.96

OLPV-180W 180 18 9.62 22

10.38

OLPV-170W 1000*540*70 16 170 18 9.44 22

10.2

OLPV-160W 160 18 8.89 22

9.6

OLPV-150W 150 18 8.33 22

9

OLPV-120W 810*540*70 14 120 18 6.67 22

7.2

OLPV-110W 110 18 6.11 22

6.6

OLPV-100W 610*540*60 10 100 18 5.56 22

6

OLPV-90W 90 18 5 22

5.4

OLPV-80W 80 18 4.44 22

4.8

OLPV-60W 420*540*60 9 60 18 3.33 22

3.6




80 Watt Folding Solar Panels , High Efficiency Solar Panels Anti Reflective 0

Detailed Product Description



  • Ideal for hiking, camping, and military use, off-grid solar panel system, caravan, RV, boat, Green house solar panel system, solar pump watering system etc.

  • Easy Operation: open up the folding solar panel,face the sun, battery clips allows for simle connection to the battery.

  • Pre-installed controller and Pre-wired for 12V battery charging, you don't have to add extra controller.

  • With handle, convinient to carry

  • Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).

  • Resistance to Salt Corrosion and Humidity

  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)

  • 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 2-year material and workmanship warranty

  • Specifcation
    Related power 80W
    Vop 17.9V
    Working current (Iop) 4.44A
    Output Tolerance ±3%
    Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
    Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
    Temperate coefficient of power Voc -0.47%/℃
    Temperature range -40℃to +80℃
    Frame and leg Heavy duty aluminum
    SLA Battery Voltage 12V
    Dimensions (L x W x H)mm 600*510*73mm(23.7*20.2*28.9in)
    Weight (kgs) 10.7kg(23.6lbs)
  •
  • Water proof IP22 design, protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water.
  • 12/24V system automatic detect.
  • PWM charging available,3-stage charging algorithm: impulse, bulk and float
  • Protection:Reverse battery pole connection protection, Lightning protection
  • Adjustable timer and light sensor
  • small self consumption, 2mA at 12V system



Where there is sunlight ,there is power supply!



The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..



The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.







FAQ



Are you manufacturer or trading company?

--- we are a manufacturer & system integrator since Jan 2008.



• What kind of certification do you have?

--- Power from 3W to 315W with TUV,CE,PID,ISO



• What is the warranty of solar panels?

--- 3-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years



• Can you quote me the best price?

---We need more information about your demands, such as the power/material/Qty/etc, then We can

suggest the suitable type and quote the best price for you.



• How do I get solar panel from ollin and Where can I get further information?

--- Please visit our website and send us email or call us.

What we can provide: High quality and very competitive price, fast delivery and best service!

A trustable and reliable supplier for your business. We have already exported our products around the world includes Russian, Middle East, South American, Southeast Asia and so on.
